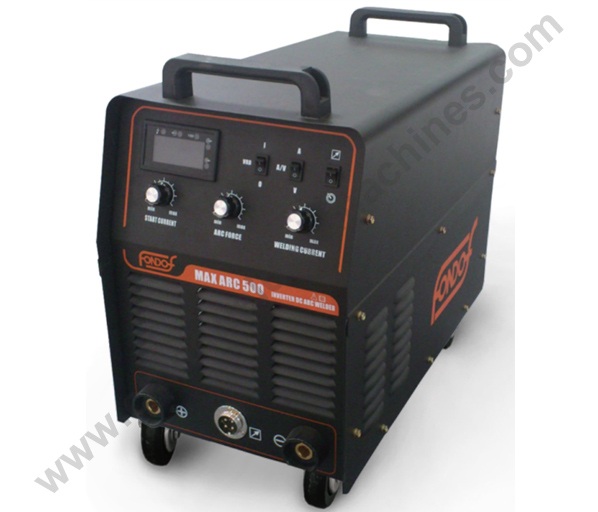

IGBT Module Inverter Series MAX ARC 500D Welding Machine

mma 500 welding machine features:

1. Adopt IGBT full bridge inverter circuit

2. Multi-protection functions provide reliability of welding machine

3. With VRD control functions

4. With ARC start and ARC force current to satisfy functional requests of different type electrode

5. Remote control current adjustment function is applicable at a long distance away from welders

6. Workable with many types of electrodes, such as acidic electrodes, alkaline electrodes, cellulose electrodes, heat resistant steel, etc.

7. Strong ability of anti-fluctuation of power supply, the ratio reaches 15% ( industrial requirement 10%.)

Manual Metal Arc (MMA)

Manual Metal Arc (MMA) also known as Shielded metal arc welding (SMAW), also flux shielded arc welding also known as stick welding is the most flexible and one of the most widely used arc welding processes. It involves striking an arc between a covered metal electrode and a workpiece.

The heat of the arc melts the parent metal and the electrode which mix together to form, on cooling, a continuous solid mass. The central metal electrode or core wire acts as a consumable, providing the filler metal for the weld. MMA welding can be used to join most steels, stainless steels, cast irons and many non-ferrous materials. For many mild and high-strength carbon steels, it is the preferred joining method.
