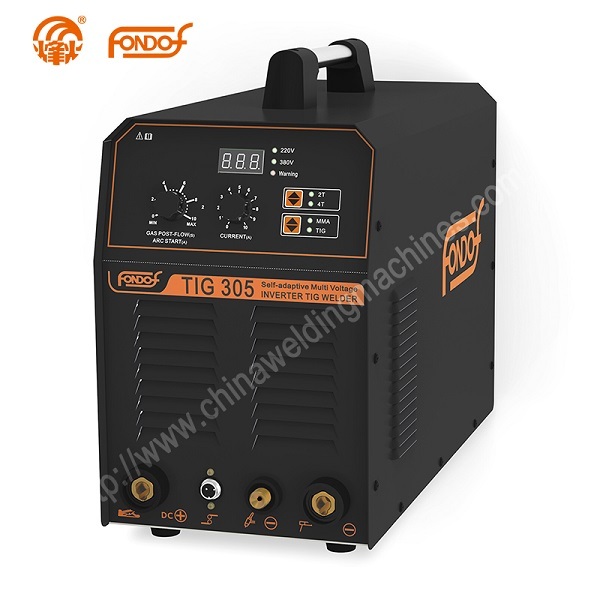

DC TIG Welding Machines
產品型號：DC TIG Welding Machines
產品分類：自動化設備/產業機械 / 其他產業機械 / 壓鑄機械
產品特色
DC TIG Welding Machines
產品規格
TIG (tungsten inert gas) welding is used to make precise, critical welds when joining metals such as mild steel, aluminum, or stainless steel. TIG welding is a two handed process (one hand holds the torch while the other feeds filler metal) and commonly involves a foot pedal or fingertip remote to control the arc amperage while welding. Like MIG welding, a shielding gas (typically argon) is required.
TIG Welding Machines Specification
|
Parameters |
TIG 305 |
|
|
Rated Input Voltage(V) |
AC220V |
AC380V |
|
Power Frequency(Hz) |
50/60Hz |
|
|
Phase |
1 |
3 |
|
Rated Input Current(A) |
25(TIG), 36(MMA) |
16(TIG), 21(MMA) |
|
Rated Input Power(KVA) |
5.5(TIG), 7.9(MMA) |
10.5(TIG), 13.8(MMA) |
|
Rated No-load Voltage(V) |
69 |
69 |
|
Welding Current(A) |
15-180 |
15-300 |
|
Rated Duty Cyvle%(40℃) |
100% |
60% |
|
Protection Class |
IP21S |
|
|
Dimensions(mm) |
530X250X430 |
|
|
Weight(Kg) |
16.8 |
|
More information of EACO, please click here
