• Assen TYL Coalescence-separation turbine oil filtration machine，

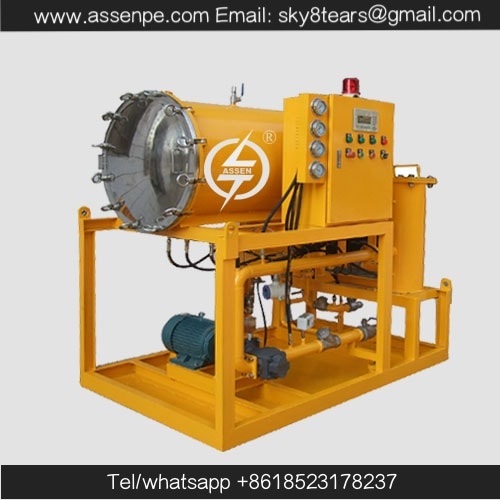

Assen TYL Coalescence-separation turbine oil filtration machine，



產品型號：TYL

產品分類：自動化設備/產業機械 / 自動化設備 / 自動化機械之週邊設備



立即線上詢問





產品特色



Application
Assen TYL Coalescence-separation turbine oil filtration machine is designed to purify steam turbine oil, and low viscosity hydraulic oil. It can improve the cleanliness of the hydraulic/lubrication system, and remove large water and impurities from turbine oil. Non-vacuum system plant can save your energy consumption.

Features:
1). Particulate Filter System:
High-efficiency filter media filter, large filtration area design, which can effectively filter out impurities in very fine particles, so that the oil reached a high of cleanliness.
2). Coalescing system:
Coalescing system consists of a set consisting of coalescing filter, which uses a unique polar molecular structure, oil free water and emulsified water through the filter after being coalesce into larger droplets, and then rely on gravity role sinking down to the water storage tank.
3). Separation System:
Separation filter in the separation system is made by special hydrophobic material, when the oil through the filter, the water droplets are blocked in the outer surface of the filter, coalescing with each other by gravity until settlement to the water storage tank.
4). Drainage System:
Separated water is stored in the water storage tank, when the height of the interface to reach the set value, the valve opens and the water discharges, until reduced to below the liquid surface, then the valve closed and the drainage stopped.
