• Assen High Vacuum Turbine Oil Purification machine

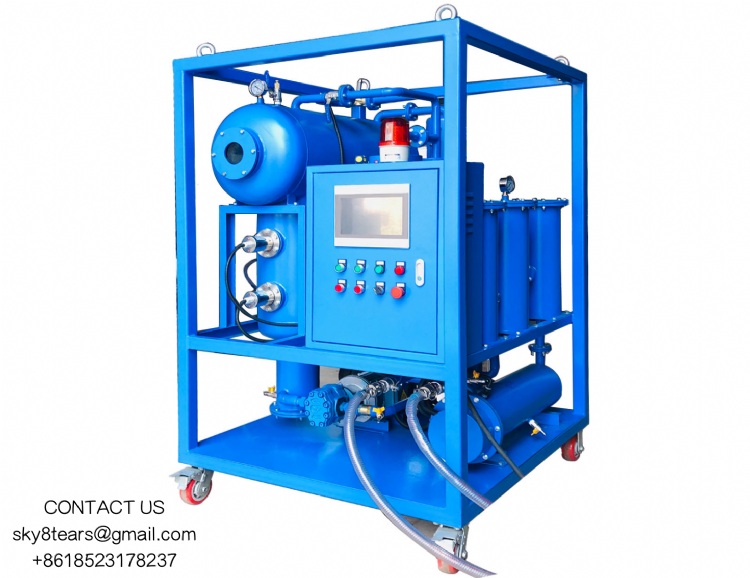

Assen High Vacuum Turbine Oil Purification machine



產品型號：TY

產品分類：自動化設備/產業機械 / 自動化設備 / 自動化控制系統



立即線上詢問





產品特色



APPLICATION
The TY Series Vacuum Turbine Oil Purifier machine is designed for purifying unqualified and used turbine oil, especially the seriously emulsified turbine oil. it can quickly remove water, gas, mechanical impurities and demulsify of turbine oil. After purification the oil performance is improved ensuring the safely running of turbine and save cost. This machine can be widely used in power station, metallurgical industry, chemical industry, etc. which need to install and maintain turbines.


FEATURES
1. Breaking emulsification thoroughly with high-molecule polymeric material.

2. Dewatering very effectively with once and for two steps dehydrating method. It can thoroughly clear away the liquid water, free water and 80% dissolved water.

3. advanced dielectric condensation devices.
4. distinctive removing impurities technique filtering through double FH trapezoidal network and absorbing by high polymer material, this machine can make the ß3 equal or surpass 200 and make the cleanness lower grade 6(NAS1638).

5. trapezoidal, spiral, automatic back flushing system.


6. On-line oil purification can be carried out with turbine or water turbine automatically without any person.

7. flow rate from 600-6000L/h, can satisfy different scale of oil treatment needs

TECHNICAL DATA
Item Unit TY-10 TY -20 TY-30 TY-50 TY-100 TY-150 TY -200 TY-300
Flow Rate L/min 10 20 30 50 100 150 200 300
Vacuum Degree MPa -0.06 ∼ -0.095
Working Pressure MPa ≤0.4
Temperature ℃ 0 ∼ 100
Power Supply ∽50Hz 380V（or as needed）
Working Noise dB(A) ≤75 ≤75 ≤75 ≤78 ≤78 ≤78 ≤80 ≤82
Heating power kW 12 15 18 24 45 60 72 84
Total power KW 14 17 20 27 48 66 81 97
Inlet/outlet caliber mm 25 25 25 32 42 50 50 60
Weight Kg 400 450 500 600 700 900 1050 1550
Oil date after treatment
Moisture(water content) ≤ 60 PPM
Gas Content ≤0.1%
Impurities Degree (Filtration precision) ≤1 micron (no free carbon)
Cleanliness ≤NAS 1638 Grade 5
