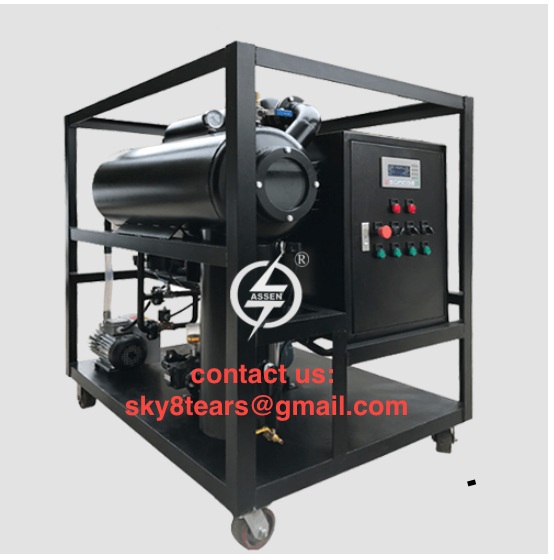

Assen ZY Portable Insulating Oil Purifier Machine transformer oil filtration
產品型號：ZY
產品分類：自動化設備/產業機械 / 其他產業機械 / 變壓器、整流器自動化設備
產品特色
Application:
The ZY portable insulating oil purifier machine is designed for extend the life of transformer oil by regular purification. It can remove moisture, gaseous and solid contaminants which seriously affect the function of electrical insulating fluids as a coolant and insulator.
This specification describes the equipment supplied by ASSEN for the processing (degasification, dehydration, filtration and optional de-acidification) of transformer insulating oil. Purification of oil in transformers can be carried out off-load or on-load depending on customer's preference.
Features
• not only purify the transformer oil but also can transfer the oil
• flow rate choices from 1800-18000LPH
• Continuously removes free water down to 5 ppm or less
• Fluid cleanliness grade (NAS) to 6 or better
• Dual water and particulate removal
• Improve oil dielectric values
• Advanced demulsification technology
• Coalescence-separation technology
• Duplex 3D evaporation technology
• Double-infrared fluid level controller
• A trinity of interlocked preventive device
• Carbon fiber infrared heating system
• Unique H.P.M high molecule absorption material
• Automatic back-flushing system
• easy to move the machine for outdoor use
• Explosion-proof type available
• On-line vacuum oiling and dehydrating feasible
After treatment
oil quality guarantees to the following specifications.
Water: ≤ 10PPM
Gas: ≤ 0.5%
Dielectric Strength: ≥60KV
Particle size: ≤5μm
Contact information
Sky ZHOU
Email: [email protected]
Tel/whatsapp +8618523178237
Website:www.assenpe.com
產品規格
|
Item |
Unit |
ZY-10 |
ZY-20 |
ZY-30 |
ZY-50 |
ZY-100 |
ZY-150 |
ZY-200 |
ZY-300 |
|
|
Flow Rate |
L/min |
10 |
20 |
30 |
50 |
100 |
150 |
200 |
300 |
|
|
Vacuum Degree |
MPa |
-0.06 ∼ -0.095 |
||||||||
|
Working Pressure |
MPa |
≤0.4 |
≤0.4 |
≤0.4 |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.5 |
|
|
Temperature Range |
℃ |
0-100 |
||||||||
|
Continuous Working |
H |
150 |
||||||||
|
Power Supply |
|
380V,3P,50Hz (or as needed) |
||||||||
|
Working Noise |
dB(A) |
≤75 |
≤75 |
≤75 |
≤75 |
≤80 |
≤80 |
≤80 |
≤80 |
|
|
Heating Power |
KW |
11 |
13 |
15 |
30 |
48 |
58 |
70 |
85 |
|
|
Total Power |
KW |
12.5 |
14.5 |
16.5 |
33.5 |
53 |
65 |
76 |
94 |
|
|
Inlet (outlet)Caliber |
mm |
25 |
25 |
25 |
32 |
42 |
50 |
50 |
60 |
|
|
Weight |
Kg |
230 |
250 |
270 |
30 |
550 |
700 |
950 |
1200 |
|
|
Dimension |
Length |
mm |
1050 |
1100 |
1150 |
1200 |
1600 |
1600 |
1800 |
1900 |
|
Width |
mm |
750 |
850 |
900 |
950 |
1000 |
1100 |
1200 |
1200 |
|
|
Height |
mm |
1300 |
1400 |
1450 |
1500 |
1800 |
1800 |
1900 |
1900 |
|
About us
As one of the leading transformer oil purification machine manufactures in China, Chongqing Assen Power Equipment Co., Ltd integrated design, development, production and sales. Relying on High-tech development and continuously providing users with satisfactory and high-quality products are our core ideas. Our company has independently innovated a number of proprietary technologies and passed the ISO 9001 quality management certification. It has formed a set of strict product technology development, mass manufacturing, quality control, and market planning management systems.
Main Product
*ZYD transformer oil purifier machine
*ZYD-I transformer oil regeneration system
*ZYD-M mobile transformer oil treatment machine
*ASV transformer evacuation system/vacuum pumping system unit
*ZY portable insulating oil filter machine
*COP cooking oil purification machine
*SF6 gas recovery and purification machine
*TAD dry air generator plant
*TY turbine oil conditioner machine
*TYA hydraulic oil filtration
*Oil water separator unit
*Oil testing kit
Our Services
1.Your inquiry related to our products or prices will be replied quickly in 24 hours.
2.Well-trained and experienced staffs to answer all your inquires in fluent English.
3.Professional service from well-trained and experienced staffs is customers’ best choice to secure good communication, on time delivery, reliable warranty etc.
4.OEM is available for Assen Products.
5.Protection of your sales area, ideas of design and all your private information.
Contact information
Sales manager: Sky ZHOU
Email: [email protected]
Tel/whatsapp: +86 18523178237
