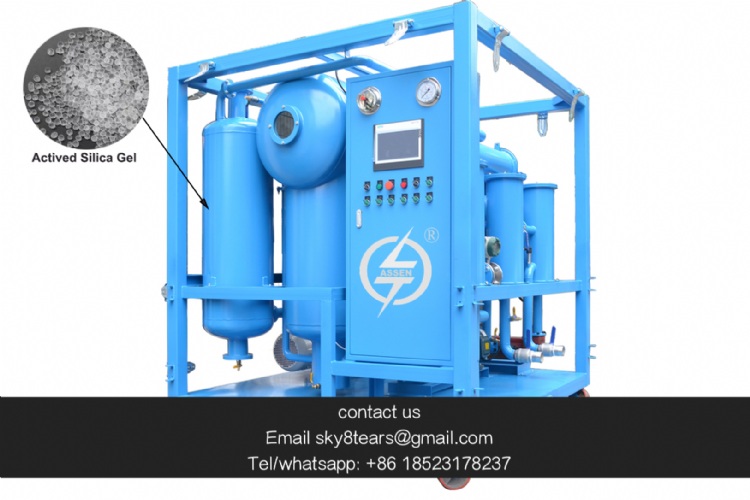

Assen ZYD-I transformer oil regeneration system oil purification insulating oil acid remove
產品型號:ZYD-I
產品分類:自動化設備/產業機械 / 自動化設備 / 自動化機械,油壓式
產品特色
ADVANTAGE:
1.It can treat deteriorated transformer oil.
2.It can significantly improve oil color, the oil can be used as new oil after treatment
3.save your cost. one set of acid removal medium can treat about 100000L oil
4.Extended life of power transformer equipment.
APPLICATION
after period use and exposure of transformer oil not only contained trace water, gas, particulate matters, but also acid, sludge, pitches, and dissociated carbon. ASSEN ZYD-I Multi-functional High Vacuum Transformer Oil Reconditioning plant can fast remove the moisture, gas, and mechanical impurities as well as eliminating organic acid, decay products, pitches, and dissociated carbon in the deteriorated transformer oil which are difficult to be removed by conventional oil purifier plants. meanwhile, the machine can also be used as a double stage transformer oil purification machine.After the treatment, the regenerated oil can meet the required standard and life span of new insulation oil.
產品規格
Technical Specifications:
Parameters |
Unit |
ZYD-I-30 |
ZYD-I-50 |
ZYD-I-100 |
ZYD-I-150 |
ZYD-I-200 |
ZYD-I-250 |
ZYD-I-300 |
|
Flow rate |
L/min |
30 |
50 |
100 |
150 |
200 |
250 |
300 |
|
Working vacuum |
Mpa |
-0.095 ∼ -0.099 |
|||||||
Working Pressure |
Mpa |
≤0.5 |
|||||||
Temperature Range |
℃ |
20 ∼ 80 |
|||||||
Power supply |
|
Three Phase 50HZ 380V |
|||||||
Working hours without trouble |
Hr |
≥4000h |
|||||||
Continuous working hours |
Hr |
≥720h |
|||||||
Working Noise |
Db(A) |
75 |
75 |
75 |
80 |
80 |
80 |
80 |
|
Heating Power |
KW |
30 |
36 |
45 |
60 |
75 |
90 |
120 |
|
Total Power |
KW |
35.5 |
41 |
52.5 |
71.4 |
86.5 |
102.5 |
135 |
|
Inlet/Outlet |
mm |
φ25 |
φ32 |
φ42 |
φ50 |
φ50 |
φ60 |
φ60 |
|
Weight |
Kg |
420 |
500 |
650 |
950 |
1100 |
1500 |
1850 |
|
Overall |
Length |
mm |
1350 |
1480 |
1890 |
2150 |
2300 |
2550 |
2770 |
Width |
mm |
1050 |
1150 |
1550 |
1750 |
1850 |
2050 |
2200 |
|
Height |
mm |
1300 |
1450 |
1850 |
1950 |
2100 |
2400 |
2700 |
After Filtration:
Moisture |
PPM |
≤3 |
Gas content |
% |
≤0.01 |
Impurity size |
μ |
≤1 (no free carbon) |
Breakdown voltage |
kV |
≥75 |
IFT |
dynes/cm |
≥40 |
Acid value |
mgKOH/g |
≤0.01 |
Color |
L |
≤1 |
Dielectric loss factors |
tgδ(90°C) |
≤0.08 |
