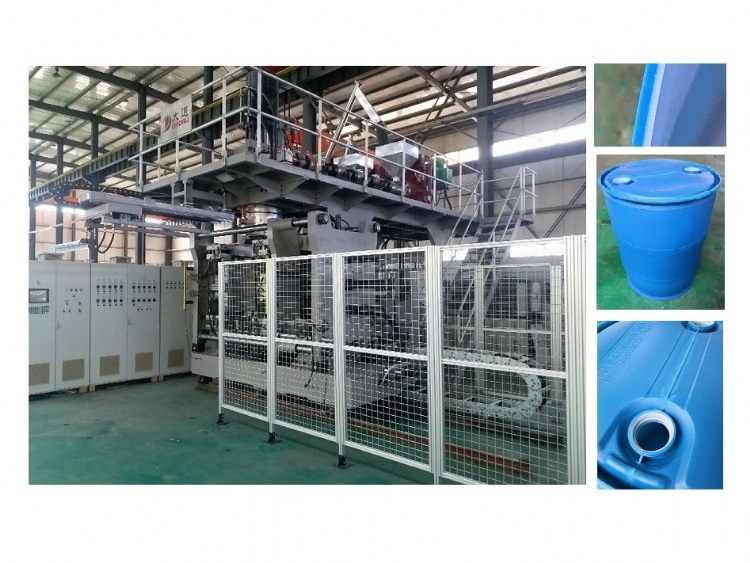

DDSJ300X2 Double Layers EBM
(i.e.: Extrusion Blow Molding Machine)

DDSJ300X2 is 2 layers EBM with acumulator created by DADAU.

To produce 200L or 220L chemical drums
Double layers & 2 colors &Twin L-ring or Single L-ring

For example such kind of 220L barrel
Weight：8.5-10.5kg/pcs
Productivity：over 20pcs/hour

2 layers are perfectly even from the slicing, nice-looking !
Falling resistance is great from the dropping testing, quality visible!

IKV Structurer Adopted
High output, Nice Plasticizing quality!

Double layer Accumulator
Nitriding Hardness is above HV900

Four-bar Structurer for the Clamping Unit

Servo Control of the Mold Opening&Closing
Stable & Fast Operation, High Clamping Pressure

A ratchet wrench is enough
to move the clamping unit

Big space between the upper guide pillars,
Easy for lifting the mold from its top.

The electric system is controlled by OMRON PLC
64 points axial wall thickness control system

Rich content in touch screen display
Curve Set, Operation Data Set, Fault Alarm etc. Full Screen Display.

The main oil tank and servo oil tanks are separated, reducing the oil change frequency

The servo cylinder hydraulic system adopts
unloading relief valve and servo valve of Shanghai 704 Research Institute (or Moog)
