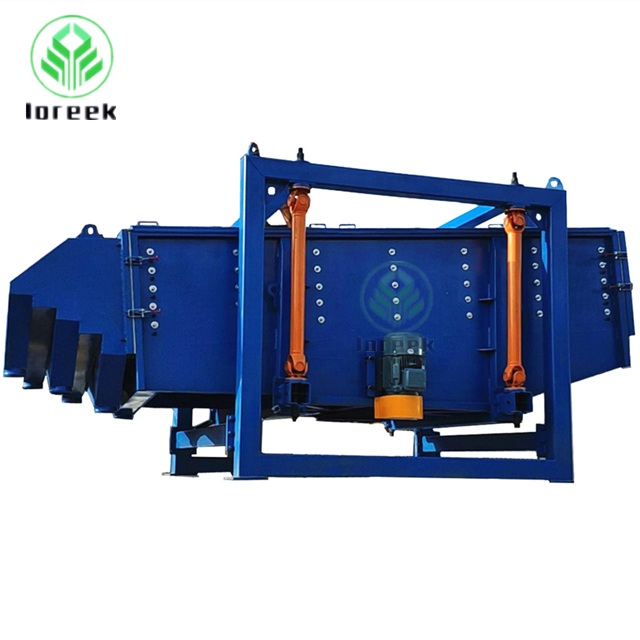

HIGH YIELD SAND RECTANGULAR GYRATORY SIFTER
產品型號:RTSM-1230/RTSM-1236/RTSM-1536/RTSM-1836/RTSM-2040
產品分類:自動化設備/產業機械 / 其他產業機械 / 篩分機
產品特色
Its screening accurary can realize above 98%. Because of its higher capacity, higher accuracy, it is widely used in sand screening and other high-end industry around the world.
產品規格
Loreek brand gyratory sifter is used for sizing frac sand, limestone, petroleum coke, silica sand or quartz sand particles. Its single unit processing capacity can realize a rate of 10-15 tons per hour. Material enters a feed box and then falls onto the screen’s surface. The gyratory vibratory screen is mounted on a downhill angle close to the angle of repose of the silica sand to promote better particle separation and high speed screening.
Its screening accurary can realize above 98%. Because of its higher capacity, higher accuracy, it is widely used in sand screening and other high-end industry around the world.
Application industries:
Gyratory sifter: As one type perfect screening equipment that combine high capacity and high sieving accuracy, Gyratory Sifter has been applied in many industries such as silica sand, activated carbon, fertilizer, fracturing sand, lime, petroleum coke, plastic, PVC powder, salt, sugar, milk powder, etc..
Structure and Parameters:
Model |
RTSM-1230 |
RTSM-1236 |
RTSM-1536 |
RTSM-1836 |
RTSM-2040 |
Screen Size(mm) |
1200x3000 |
1200x3600 |
1500x3600 |
1800x3600 |
2000x4000 |
Material Granularity |
6mm - 0.075mm |
||||
Angle |
5°-8° |
5°-8° |
5°-8° |
5°-8° |
5°-8° |
Layer |
1-5 |
1-5 |
1-5 |
1-5 |
1-5 |
Power |
4kw |
4kw |
5.5kw |
7.5kw |
7.5kw |
