SEMI-AUTOMATC/AUTOMATIC TYRE RECYCLING RECLAIMED RUBBER PLANT
產品型號:LORREK
產品特色
Loreek brand reclaimed rubber equipment is a device that recycles waste rubber products to restore their rubber properties. Under the combined effects of plasticizers (softeners and activators), oxygen, heat, and mechanical shear, some rubber chains of waste rubber are broken, thereby achieving the purpose of restoring its rubber properties. It mainly consists of dynamic desulfurization, rubber mixing, rubber refining and rubber kneading sections. After these procedures, the final products is reclaimed rubber sheet.
產品規格
Reclaimed rubber production line (400-1000kg/h)
Simple Introduction:
Loreek brand reclaimed rubber equipment is a device that recycles waste rubber products to restore their rubber properties. Under the combined effects of plasticizers (softeners and activators), oxygen, heat, and mechanical shear, some rubber chains of waste rubber are broken, thereby achieving the purpose of restoring its rubber properties. It mainly consists of dynamic desulfurization, rubber mixing, rubber refining and rubber kneading sections. After these procedures, the final products is reclaimed rubber sheet.
Application of reclaimed rubber:
Reclaimed rubber can replace some of the original rubber for the production of various rubber products.100% recycled rubber can also be used to produce rubber products with low performance requirements. Because of the excellent processing performance and low price of recycled rubber, it is only about one-fifth the price of raw rubber. Therefore, recycled rubber is widely used. It can not only reduce the cost of rubber products, but also improve the production process performance.

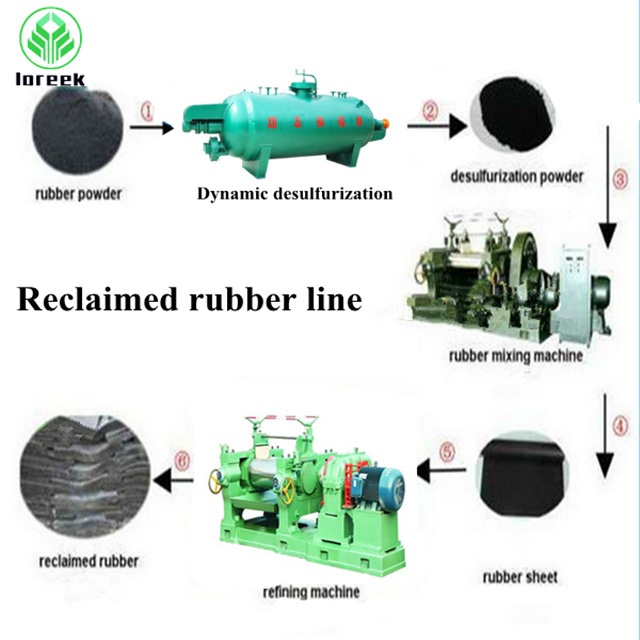

The main flow chart of reclaimed rubber plant
1. Rubber powder extrusion devulcanization |
||||
Item |
Description |
qty. |
Power |
Use |
1-1 |
Extruding devulcanization 9.1Automatic feeding, metering, mixing system 9.2 Force metering feeding system 9.3 Constant temperature preheating and regeneration system 9.4 Pressure regulating and shearing cooling system 9.5 Devulcanization main control system 9.6 Material buffering device |
1set |
30KW |
Rubber devulcanization. |
1-2 |
Screw conveyor (1.5+5m) |
4 |
Option |
Transport powder 30mesh and devulcanized rubber powder into storage box 4. |
Storage box 4 + rack |
4 |
Option |
Store powder 30mesh and devulcanized powder. |
|
2. Rubber milling and refining |
||||
2-1 |
Screw conveyor |
Option |
|
Transport devulcanized rubber powder into mixing mill. |
2-2 |
Mixing mill Bearing, reducer connects rolls directly through coupling, safety devices. |
2 |
40*2=80KW |
Rubber milling and mixing.
|
2-3 |
Refiner Bearing, reducer connects rolls directly through coupling, safety devices. |
1 |
55KW |
Rubber refining and sheeting.
|
2-4 |
Automatic winding and weighing machine |
Option |
|
|
2-5 |
Waste gas disposing devices (optional) |
Option |
|
Dispose the waste gas from mixing mill and refiner. (Suggest the user make it according to the actual factory area.) |
2-6 |
Installation and debugging |
|
|
2-3 engineers go to buyer’s factory, need about 10-20 days. |
The prospects of reclaimed rubber industry
At present, the utilization of waste rubber is mainly divided into three major parts: tire retreading, rubber powder production, and recycled rubber production. Among them, the fastest-growing and mature industry is the reclaimed rubber industry. The waste rubber used in reclaimed rubber industry has reached 80% of the total utilization in China.
20 years experience in reclaimed rubber equipment manufacturing and sale.
Welcome to contact and visit us.
info(at)loreek.com
