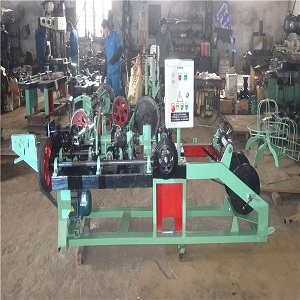

CS-C Reverse Twisted Barbed Wire Making Machine Equipment
產品型號：cs-c
產品特色
Contact
melody(@)diaozhuomachine.com
Machine description
1.CS-C Barbed wire machine named positive and negative twisted barbed wire machine,straight and reverse twisted barbed wire machine.It can produce cs-c type double twisted barbed wire
2.Barbed wire is widely used for national border,military,animal breeding,agriculture and so on.
Machine technical parameters
Name CS-C barbed wire making machine
Motor 2.2KW
Strand wire diameter 2.2-2.8mm
Barbed wire diameter 1.8-2.2mm
Material Galvanized Wire; PVC Coated Wire;
Barb pitch spacing 76mm（3”） 102mm（4”）or as requirement
Twist 4
Machine life Over 10 years
Overall Dimension 1900mmx1300mmx980mm
Rated output 40kg/h
Rotating Speed of Drive shaft 432r/min
Weight 1200kg
Advantage
1.Input wire straightening and easy to cut
2.Counter to calculate the length and auto stop according to settings
3.High efficiency，low machine malfunction
4.Save energy and space，low noise，and 24 hours continue working
5.Barb spacing can be adjusted by
6.Free spare accessory parts
7.Emergency stop button for safety
8.Inching button can start and stop the machine any time，more precise
產品規格
Machine description
- CS-C Barbed wire machine named positive and negative twisted barbed wire machine,straight and reverse twisted barbed wire machine.It can produce cs-c type double twisted barbed wire
- Barbed wire is widely used for national border,military,animal breeding,agriculture and so on.
Machine technical parameters
|
Name |
CS-C barbed wire making machine |
|
Motor |
2.2KW |
|
Strand wire diameter |
2.2-2.8mm |
|
Barbed wire diameter |
1.8-2.2mm |
|
Material |
Galvanized Wire; PVC Coated Wire; |
|
Barb pitch spacing |
76mm（3”） 102mm（4”）or as requirement |
|
Twist |
4 |
|
Machine life |
Over 10 years |
|
Overall Dimension |
1900mmx1300mmx980mm |
|
Rated output |
40kg/h |
|
Rotating Speed of Drive shaft |
432r/min |
|
Weight |
1200kg |
Advantage
- Input wire straightening and easy to cut
- Counter to calculate the length and auto stop according to settings
- High efficiency，low machine malfunction
- Save energy and space，low noise，and 24 hours continue working
- Barb spacing can be adjusted by
- Free spare accessory parts
- Emergency stop button for safety
- Inching button can start and stop the machine any time，more precise
