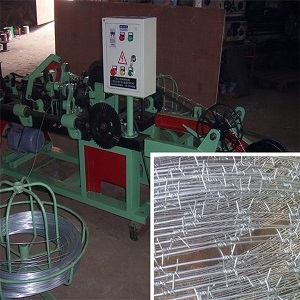

CS-B Single Twisted Barbed Wire Making Machine
產品型號：cs-b
產品分類：自動化設備/產業機械 / 自動化設備 / 自動化輸送設備
產品特色
Contact
melody(@)diaozhuomachine.com
Machine description
1.CS-B single twisted barbed wire netting machine is designed to produce screens with sing or double-stranded barbed steel wire,thermo-plated with zinc.The machine is of horizontal design,consiting of two parts,assembled together at the middle.It is safe and reliable in operation,capable of turning out high quality products with consistency
2.Barbed wire is widely used for military,national border,animal breeding,highway,railway,etc.
產品規格
Machine technical parameters
Name CS-B single barbed wire making machine
Motor 2.2KW
Strand wire diameter 1.6-2.6mm
Barbed wire diameter 1.6-2.2mm
Material Galvanized Wire;
Barb pitch spacing 76mm（3”） 102mm（4”）or as requirement
Twist 4
Machine life Over 10 years
Overall Dimension 1900mmx1300mmx980mm
Rated output 50kg/h
Rotating Speed of Drive shaft 357r/min
Weight 1200kg
Advantage
1.Input wire straightening and easy to cut
2.Counter to calculate the length and auto stop according to settings
3.High efficiency，low machine malfunction
4.Save energy and space，low noise，and 24 hours continue working
5.Barb spacing can be adjusted by
6.Free spare accessory parts
7.Emergency stop button for safety
8.Inching button can start and stop the machine any time，more precise
