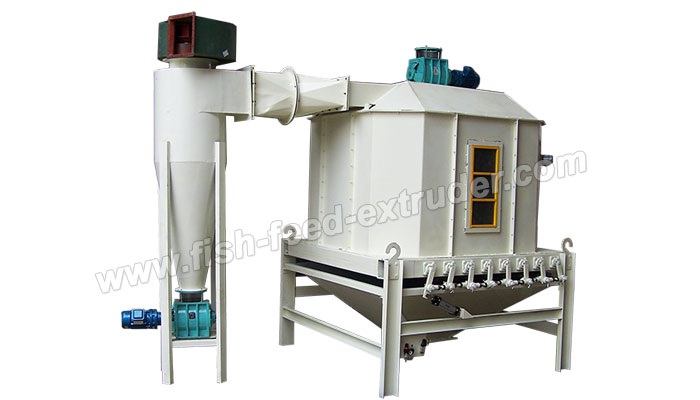

Features of cooler for pellets

1. Pellet cooler is suitable for cooling various kinds of pellets such as pelleted feed, expanded feeds, extruded feeds and flake feeds etc.
2. Pellet cooler is structurally arranged in a vertical way, the appearance is simple and beautiful;
3. Pellet cooler is equipped with a reciprocating grate type discharging device, which is characterized by its smooth material flowing and uniform discharging;
4. The octagon cooling bin has eliminated dead cooling corner, which is beneficial to the cooling treatment of materials;
5. The novel rotary spreader ensures materials for uniform and complete cooling with reduced breakage, featuring adjustable range of material distribution and lowered power consumption;
6. There are some pressure-relief plates provided above the discharging device, which can greatly improve the working load of the discharging device, reduce SKLN series counterflow cooler’s distortion, and extend the service life of the component parts.

Working principle of coole for pellets

When pellet came out from pellet machine, it contains determinate moisture as 8~17%, temperature around 70~85°C, if the environment air with high humidity, pellets will absorb moisture from air, and will get mildew when storage. So a feed pellet cooler is needed to keep pellets dry and safe to achieve storage requirement.

After cooling

After cooling pellets temperature don’t exceed room temperature +3-+5°C.

Shut down automatic nesting with the unique effect, to avoid cross-contamination between feed.
