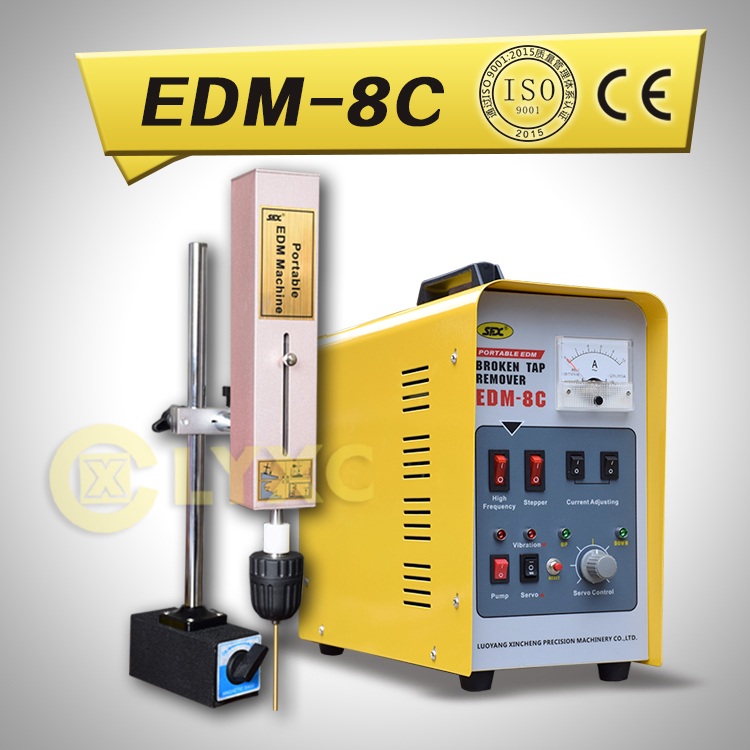

EDM-8C Portable EDM Broken Tap Remover
產品型號:EDM-8C
產品分類:工具機產業機械 / 放電加工機 / 快速細孔放電加工機
產品特色
Input power 800W
Light, small, portable, and compact design allows the EDM-8C tap remover to be moved and used anywhere in the shop.
High speed and efficiency at a low cost.
Simple set up and operation allows easy removal of taps anywhere.
Power source choices 100V/110V/120V/200V/230V/240V, 1PHASE, 50HZ/60HZ
Dielectric Machine uses ordinary tap water as dielectric liquid.
Electrodes Uses any brass rod or tube as an electrode.(1,2,3,4,5,6,8,9,10, )
Small size and magnetic base allow machining even on large work pieces.
Removes taps with no damage or stress to the work piece.
Additional applications include cutting tungsten carbide or any other conductive material.
產品規格
EDM-8C portable EDM brokne tap remover processing up-side down or horizontally
Features:
- Input power 800W
- Light, small, portable, and compact design allows the EDM-8C tap remover to be moved and used anywhere in the shop.
- High speed and efficiency at a low cost.
- Simple set up and operation allows easy removal of taps anywhere.
- Power source choices 100V/110V/120V/200V/230V/240V, 1PHASE, 50HZ/60HZ
- Dielectric Machine uses ordinary tap water as dielectric liquid.
- Electrodes Uses any brass rod or tube as an electrode.(ø1,ø2,ø3,ø4,ø5,ø6,ø8,ø9,ø10,ø11,ø13,ø16,ø18 )
- Note: ø1~ø11 are round brass rod, ø13,ø16,ø18 are hexagonal brass rod)
- Small size and magnetic base allow machining even on large work pieces.
- Removes taps with no damage or stress to the work piece.
- Additional applications include cutting tungsten carbide or any other conductive material.
Machining Functions:
- Auto Feed
- Depth setting (stops at a specific depth)
- Selectable arcing timer
- Auto retract
- Swiveling work head
- Alarm messages: depth arrival, arcing, over-temp.
Specification:
Stepper Current | Yes |
Depth setting, auto reatract and alarm | Yes |
Accessories storage | Toolkit |
Input Power | 800w |
Electrode chuck diameter | 0.8~10 mm |
Working Liquid | Tap water |
Max Process Depth of spindle servo | 70mm |
Short Hole Processing Speed | 1mm/min |
Power Box Size | 380*160*300mm |
Model and size of working head | DK8 300*50*50 mm |
Packing Size | 498*308*392 mm |
Net Weight | 16 Kg |
Advantage: One of the big advantages of using the SFX Portable EDM machine is it's portability. Portability allows one to take the machine to the work and do the hole making or stud extraction work in place. Without the Portable EDM, broken bolts or taps may require removal of the engine head or block in a car or truck in order to extract the broken piece. Additionally, the SFX Portable EDM machine will work in any directions, ie, upside down or horizontally, etc. Most EDM machines are not portable and require that the work be taken to the machine.
