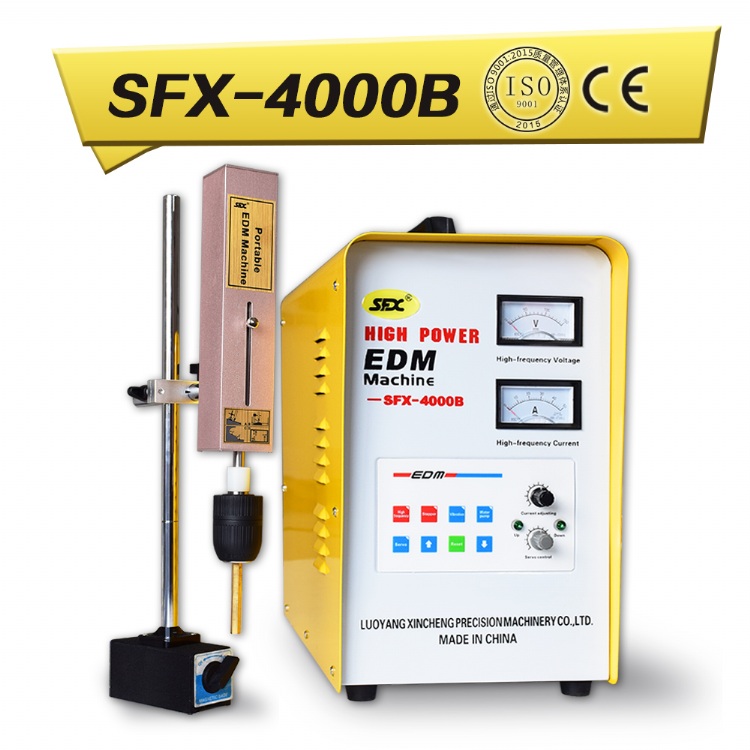

America and Russia warehouse fast delviery portable EDM machine 110V/220V optional broken tap remover

Features:

• Input power 3000W
• Light, small, portable, and compact design allows the SFX-4000B tap remover to be moved and used anywhere in the shop.
• High speed and efficiency at a low cost.
• Simple set up and operation allows easy removal of taps anywhere.
• Power source choices 100V/110V/120V/200V/230V/240V, 1PHASE, 50HZ/60HZ
• Dielectric Machine uses ordinary tap water as dielectric liquid.
• Electrodes Uses any brass rod or tube as an electrode.(ø1,ø2,ø3,ø4,ø5,ø6,ø8,ø9,ø10,ø11,ø13,ø16,ø18 )
• Note: ø1~ø11 are round brass rod, ø13,ø16,ø18 are hexagonal brass rod)
• Small size and magnetic base allow machining even on large work pieces.
• Removes taps with no damage or stress to the work piece.
• Additional applications include cutting tungsten carbide or any other conductive material.

Machining Functions:

• Auto Feed
• Depth setting (stops at a specific depth)
• Selectable arcing timer
• Auto retract
• Swiveling work head
• Alarm messages: depth arrival, arcing, over-temp.

Specification:

Advantage: One of the big advantages of using the SFX Portable EDM machine is it's portability. Portability allows one to take the machine to the work and do the hole making or stud extraction work in place. Without the Portable EDM, broken bolts or taps may require removal of the engine head or block in a car or truck in order to extract the broken piece. Additionally, the SFX Portable EDM machine will work in any directions, ie, upside down or horizontally, etc. Most EDM machines are not portable and require that the work be taken to the machine.
