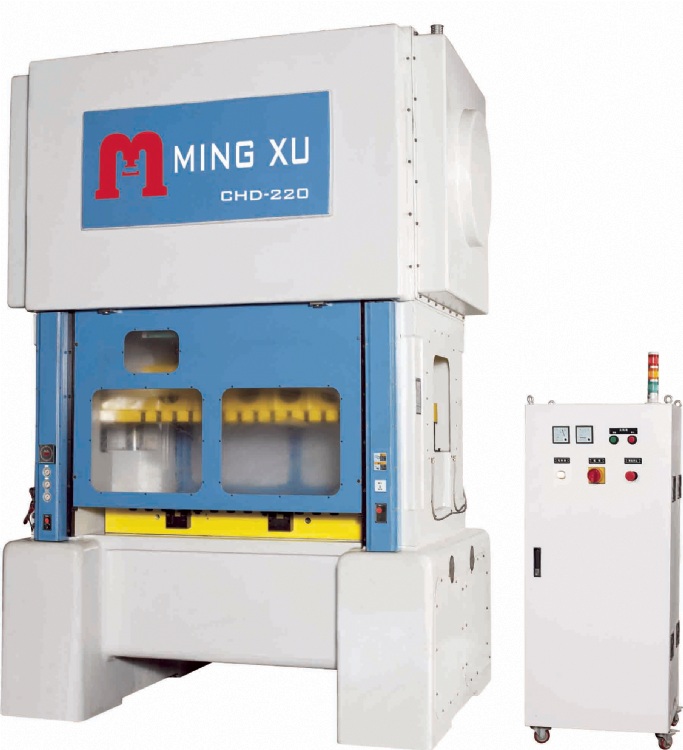

Gantry Precision High-speed
產品型號:Ming Xu CHD-220
產品分類:工具機產業機械 / 金屬成型工具機 / 高速精密沖床
產品特色
Tonnage Capacity 220 Ton
Stroke of slide: mm 20 30 40 50
S.P.M 150-450 150-400 150-350 150-300
Die-Height (mm) 405-455 400-450 395-445 390-440
Bolster (mm) 2000*950*180
Area of Slide (mm) 2000*700
Slide Adjustment 50mm
Bed Opening mm 1700*260
Motor 50HP
Gross Weight: 48 tons
Lubrication: Automatic Lubrication
Speed Control: Inverter
Clutch & Brake: Air & Friction
Auto Top Stop: T.D.C
Shock Absorber: Spring damper
