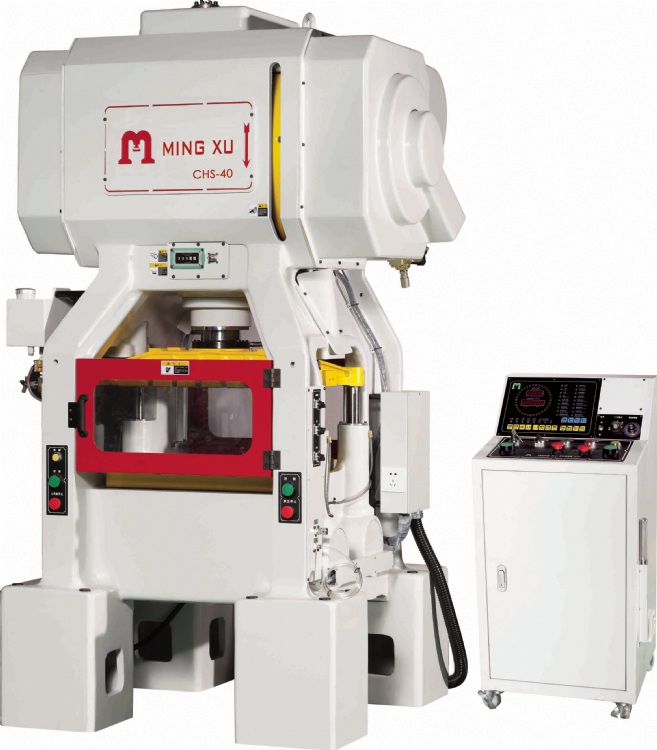

Gantry Precision High-speed
產品型號：Ming Xu CHS-40
產品分類：工具機產業機械 / 金屬成型工具機 / 高速精密沖床
產品特色
Tonnage: 40Ton
Stroke of slide: 20 30 40
S.P.M: 200-800 200-700 200-600
Die-Height: 215-245 210-240 205-235
Bolster: 650mm*500mm*90mm
Area of Slide: 600mm*400mm
Slide Adjustment: 30mm
Bed Opening: （500）400mm*100mm
Motor: 7.5HP
Gross Weight: 4.9 tons
Lubrication: Automatic Lubrication
Speed Control: Inverter
Clutch & Brake: Air & Friction
Auto Top Stop: T.D.C
Shock Absorber: Pneumatic or spring damper
