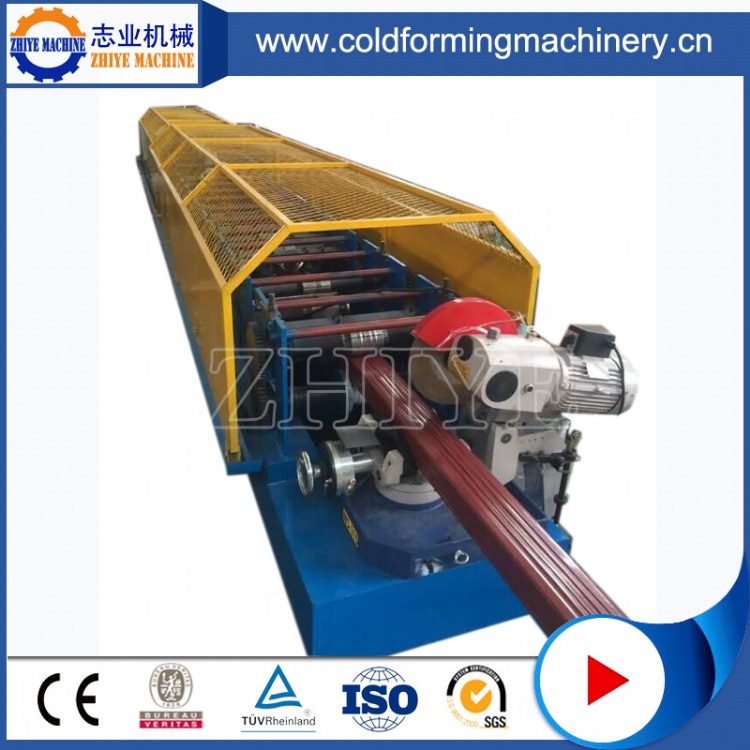

Square Downspout Pipe Cold Forming Machine
產品型號:zy
產品特色
Product Description:
A rain gutter also known as a "rain catcher", is a narrow channel, or trough, forming the component of a roof system which collects and diverts rainwater away from the roof edge.
產品規格
Product Description:
A rain gutter also known as a "rain catcher", is a narrow channel, or trough, forming the component of a roof system which collects and diverts rainwater away from the roof edge.
The main purpose of a rain gutter is to protect a building's foundation by channeling water away from its base. The gutter also helps to reduce erosion, prevents leaks in basements and crawlspaces, protects painted or stained surfaces by reducing exposure to water,and provides a means to collect rainwater for later use.
Technical parameter of product line:
Material of cutting: | Cr12Mov with quench HRC58-62 |
Steel Thickness: | 0.3-0.6mm |
Raw material: | Galvanized steel sheet |
Line speed: | 10-15m/min( cutting time not included) |
Transmission: | By chain 1 inch |
Shaft diameter: | 70mm, material is 45# forge steel |
Dimensions: | 3.5m x 1.6m x 1.5m |
Weight: | 8T |
Power: | 4Kw |
Roller material: | 45# forge steel, coated with chrome |
Working flow:
Decoiling the sheet--sheet guiding---roll forming---measure length---cutting the panel---panels to the supporter
Packaging & Shipping:
1,We have professional technicians for loading Guaranteed the goods load into container without any damage.
2,Nude, with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.
3,30 working days after received the deposite
Our service:
We provide the technical support for whole life. Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free. When need the technician to go abroad, we will arrange the technician.But the buyer should take all the cost, including Visa, Roundtrip ticket,suitable accommodation and pay the service fee to the technician with $150/days
Contact information:
Email:rollformingmachine2atzhiyemachinery.com
WhatsApp/Viber:+86 18833785938
Tel:+86 18833785938
Wechat: 18833785938
