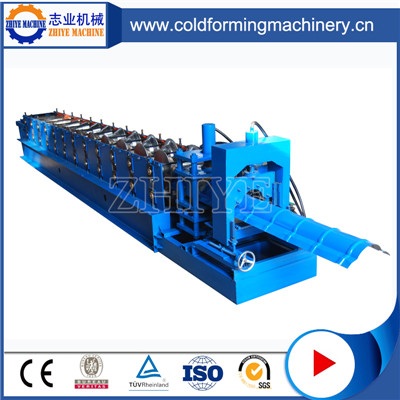

Roof Ridge Cap Roll Forming Machine
產品型號:ZY
產品特色
Product Description:
Ridge Cap produced by this kind of machine are looked beautiful, elegant and noble. It can be widely used in garden-style factory, traveling scenic spots, hotel, exhibition center, villa, civil construction and so on.
產品規格
Product Description:
Ridge Cap produced by this kind of machine are looked beautiful, elegant and noble. It can be widely used in garden-style factory, traveling scenic spots, hotel, exhibition center, villa, civil construction and so on.
Features of this: lower cost high efficiency reliable working low energy consumption.
Technical parameter of product line:
Material of cutting: | Cr12 |
Steel Thickness: | 0.5mm-0.6mm |
Charge in width: | 1000mm |
Line speed: | 8m/min-12m/min |
Rolling rows: | 16rows |
Rolling diameter: | 70mm |
Dimensions: | 15m*1.9m*1.4m |
Weight: | 8T |
Power: | 4Kw |
Roller material: | 45# steel |
Working flow:
Decoiling the sheet--sheet guiding---roll forming---measure length---cutting the panel---panels to the supporter
Packaging & Shipping:
1,We have professional technicians for loading Guaranteed the goods load into container without any damage.
2,Nude, with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.
3,30 working days after received the deposite
Our service:
We provide the technical support for whole life. Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free. When need the technician to go abroad, we will arrange the technician.But the buyer should take all the cost, including Visa, Roundtrip ticket,suitable accommodation and pay the service fee to the technician with $150/days
Contact information:
Email:rollformingmachine2atzhiyemachinery.com
WhatsApp/Viber:+86 18833785938
Tel:+86 18833785938
Wechat: 18833785938
