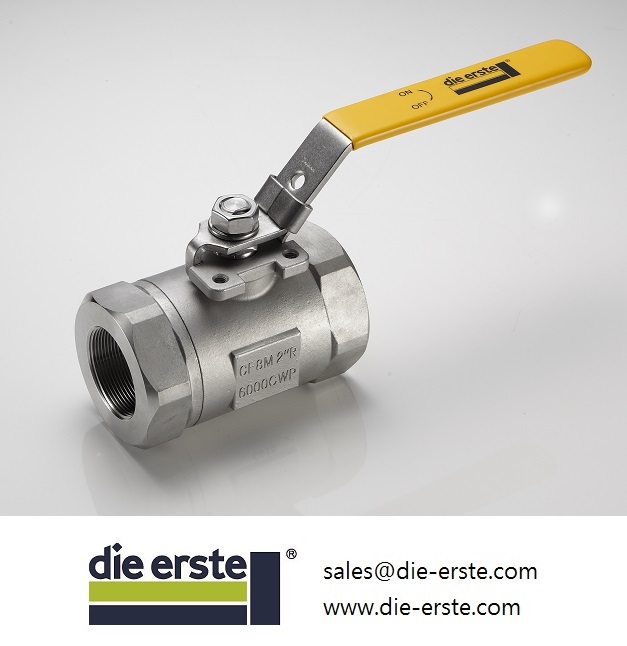

Fire-Safe High Pressure 2-PC Full Port, 6000 PSI Ball Valve
產品型號：FSB-26 Series
產品分類：自動化設備/產業機械 / 鋼管製造機 / 管用修端機
產品特色
Specification :
Construction: 2-Piece screw in.
Flow bore: 1/4”~1-1/2” Full port, 2” Regular port.
Rating: Class 2500 (6000 PSI); 150 PSI Saturated Steam.
Temperature: -20 ~ 180°F (DELRIN)
Materials: ASTM CF8M, CF8, WCB
Size range: 1/4”~2”.
API 607 5th Edition Fire-Safe Test approved.
產品規格
Features :
Applications for Hydraulic, Chemical, Steam, Oil/ Gas, Oxygen, Vacuum.
Integral ISO 5211 mounting pad easy for automation.
Thrust washer prevents galling, reduces torque and provides secondary stem seal.
Long cycle life, Low uniform torques.
Adjustable stem packing.
Bottom Entry Blow-Out Proof Stem design Provides Maximum Safety.
Wide range of seat & seal materials is available.
Lock device is available.
Investment cast body construction.
DIN EN 10204-3.1 Certificate is Available.
Safety/Quality Approvals :
Female pipe Threaded to NPT, DIN 259/2999, BS21.
Inspection & testing according to API 598.
API 607 5th Edition Fire-Safe Test approved.
PED 97/23/EC; ISO 9001.
