Electric Actuators
產品型號：Electric Actuators
產品分類：自動化設備/產業機械 / 自動化設備 / 自動裝配生產線
產品特色
Jexme actuators has a wide range of on-off and modulation control series. The family of Jexme actuators ranges from Output Torque from 34.3 to 597.8 N-m and Voltage that covers 100~120VAC, 200~240VAC, 380 VAC, 12 VAC , 24 VDC , and 24 VAC / VDC. You can expect highly reliable performance over a long functional life, helping to maximize your uptime and minimize total cost of ownership.
產品規格
Features
CE approval
Water & Dust Proof IP67
Visual position indicator
Compact and lightweight
ISO/DIN valve interface
High Accuracy and easy-operation
Output Torque: 34.3 to 798 N-m
Enclosure: Water and dust proof IP 67
Voltage Rating: 100~120VAC / 200~240VAC / 1 Phase
Input Singal Level: 4-20mA, 1-5VDC, 0-10VAC
Temperature Limits: -10℃~60℃
Connection: Female output shaft
Relative Huminity Range: 30%~95%
Operation: Reversing for use with quarter-turn valves or rotating equipment to full rotation.
One-body-shape and build-in printed circuit board ensure endurance.
Can be continuously operated by PID input signals.

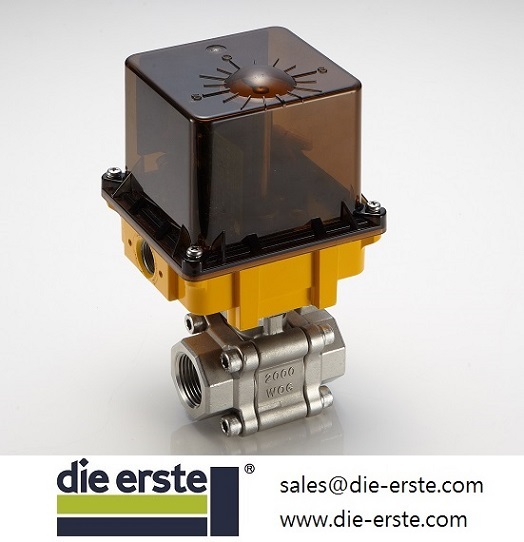

Assembled Automated Valve Packages
Die Erste assemble, test, and commission a system that includes the appropriate Die Erste brand actuator and controls. Other than the individual actuators and controls, we can also provide a complete, in-house assembled package that includes actuator, controls and a selected valve, and is 100% fully tested before shipment.
