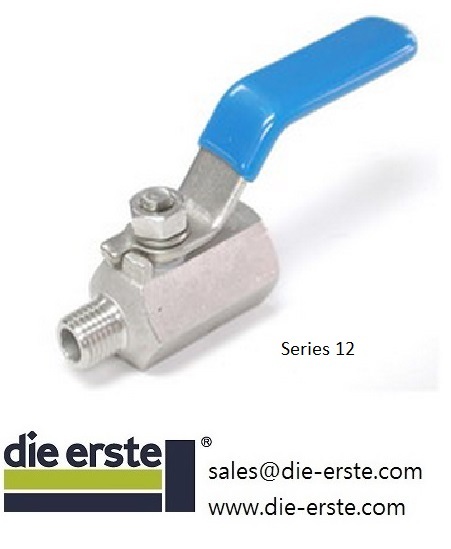

1PC, 2-PC, 3-PC BALL VALVE CLASS 150/300 PN 16/25/40
產品型號：ED series General Purpose ball valves
產品分類：自動化設備/產業機械 / 鋼管製造機 / 不鏽鋼管製造機
產品特色
ED series General Purpose ball valves
1PC, 2-PC, 3-PC BALL VALVE CLASS 150/300 PN 16/25/40
Pressure Rating
1000 psi (PN64) WOG, 150 psi (10 bar) with saturated steam
With Flanged End:
40 Bar for size ½” – 2”
16 Bar for size 2½” – 4”
The whole series of ball valves are approved according to European
Directive 97/23/EC.
Temperature Rating
-20°F to 400°F (equivalent to -28°C ~ 204°C) with PTFE and R.PTFE
End Connection: Threaded, Butt-welding, Socket-welding, Flange end connection
Body Material: ASTM CF8M, CF8, WCB (DIN 1.4408, 1.4308, and1.0619)
Size Range: 1/4” – 4” (DN8 ~ DN100)
With Flanged End: 1/2” – 4” (DN15 ~ DN100)
Standards and Specifications: Flanged end connection face to face dimension according to DIN 3202 F1
Flange end face dimension according to DIN2633
All valves are factory tested to meet API 598 and MSS SP-72.
The Die Erste series ball valve, which include an extensive range of full and reduced bore ball valves serving a comprehensive spectrum of applications in the chemical, pharmaceutical, oil, petrochemical and allied process industries, accommodates a wide choice of stainless /carbon steel body, seats, seals, and accessories for almost every type of manual or automated application with the direct mount pad. Valves are available from 1/4” to 12” sizes and are also suitable for corrosive services.
產品規格
ED series General Purpose ball valves
1PC, 2-PC, 3-PC BALL VALVE CLASS 150/300 PN 16/25/40
Pressure Rating
1000 psi (PN64) WOG, 150 psi (10 bar) with saturated steam
With Flanged End:
40 Bar for size ½” – 2”
16 Bar for size 2½” – 4”
