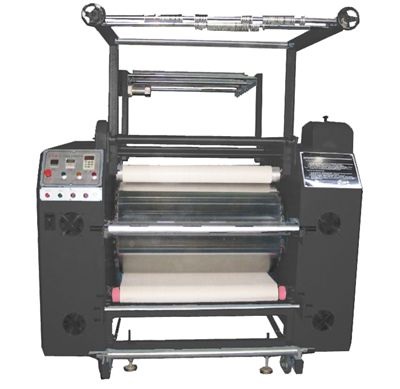

逸東歐洲系多功能織帶熱轉印印花機
產品型號：ELT-0642
產品分類：紡織染整成衣暨縫製機械 / 紡織染整機械 / 其他
產品特色
� Auto cool-down system(shut down when drop to 100°) & accurate temperature control
� Auto-alignment system for blanket
� Pneumatic blanket tension & auto blanket separation when power off
� Hard chrome double layers drum, 100% full oil
� Safety device against explosion pressure, auto switch-off
� Optional adjustable power & separate power box
產品規格
|
ELT Series |
ELT-0642 |
ELT-1042 |
|
Heating Media |
Heating Oil, 100% full |
|
|
Voltage |
3 phase, 220V / 380V |
|
|
Power(KW) |
20 |
28 |
|
Drum Diameter |
420mm (16.54”) |
|
|
Transfer Speed |
1.5m/min |
|
|
Transfer Temperature |
240℃ |
|
|
Heat Element |
15pcs |
|
|
Transfer width |
Up to 500mm |
Up to 900mm |
|
Spacers |
20pcs |
|
|
Process path |
Feeding in through bottom of drum |
|
|
Application |
Roll-to-roll (ribbon, lanyard, belt, garment, etc.) |
|
|
Rollers |
2 feeding rollers & 2 air expansion collecting rollers |
|
|
Air cylinder |
Yes |
|
|
Blanket size(mm) |
550*3100*8 |
950*3100*8 |
|
Machine size(m) |
- |
|
|
Packing size(m) |
1.80*1.58*1.62 + 1.34*0.82*1.16 |
2.20*1.58*1.62 + 1.34*1.22*1.16 |
|
Net weight(kg) |
850kg |
1050kg |
|
Gross weight(kg) |
1000kg |
1200kg |
- Blanket and oil drum are not under warranty
- Other parts are eligible for 12 months warranty under proper use (starting from EXW-factory time)
