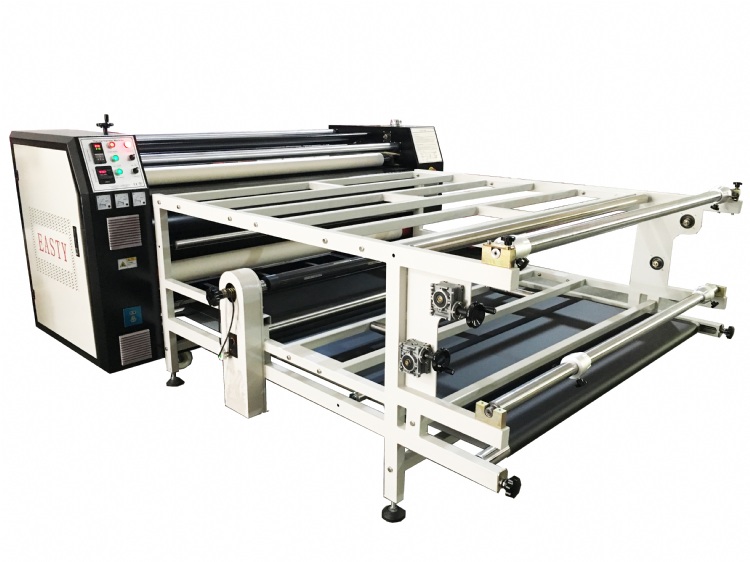

逸東歐洲系多功能進階版熱轉印印花機
產品型號：EMTS-1742
產品分類：紡織染整成衣暨縫製機械 / 紡織染整機械 / 其他
產品特色
� Fully functional advanced model at competitive price
� Suitable for roll-to-roll and multifunctional jobs
� Strong Pneumatic pressure system
� Heating Element detection and with external oil tank
� Branded motor, controller, cylinder and electric parts
� New environmental iron frame packing
� Thicker 100% nomex blanket used in new model
� Single phase available for EMTS-1720
產品規格
|
EMTS(Advanced level) Series |
EMTS-1742 |
EMTS-1720 |
|
Heating Media |
Heating Oil, 80% full |
Heating Oil, 50% full |
|
Voltage |
3 phase, 220V / 380V (or single phase 110V or 220V for EMTS-1720) |
|
|
Power(KW) |
19KW |
10KW |
|
Diameter |
420mm (16.54”) |
200mm (7.87”) |
|
Heat Element |
12pcs |
6pcs |
|
Quality transfer Speed |
Up to 1.5m/min |
Up to 0.8m/min |
|
Transfer width |
1.7m |
1.7m |
|
Process path |
Feeding in through top of drum |
|
|
Application |
Roll-to-roll & Piece-by-piece |
|
|
Rollers |
3 feeding rollers 2 collecting air expansion shaft |
3 feeding rollers 2 collecting shaft |
|
Working table |
YES (glass not included) |
YES (glass not included) |
|
Table size(m) |
2.00*1.92*0.96 |
1.93*0.83*1.10 |
|
Blanket size(m) |
1.76*2.70*0.008 |
1.76*1.76*0.008 |
|
Machine size(m) |
3.90*2.64*1.26 |
2.53*0.68*1.20 |
|
Packing size(m) |
2.65*1.07*1.60 |
2.70*0.84*1.27 |
|
Gross weight(kg) |
1420 |
1000 |
- Blanket and oil drum are not under warranty
- Other parts are eligible for 12 months warranty under proper use (starting from EXW-factory time)
