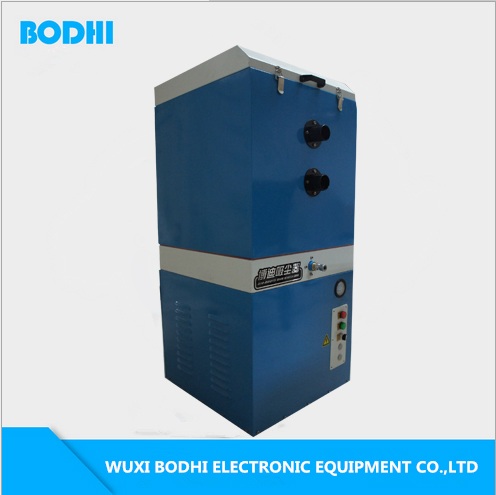

High pressure vacumm efficiency cartridge dust collector
產品型號：HCD-GY
產品分類：自動化設備/產業機械 / 其他產業機械 / 集塵機
產品特色
HCD-GY (high vacuum cleaner) is our best selling dust collector, suitable for general cleaning , extracting welding fumes, grinding dust in construction sites and small workshops. It can capture dust directly from grinding /welding operation which prevents containinants from spread, which signficantly improves the workshop environment.
產品規格
|
Brand Name |
BODHI |
|
Application |
Girth welding,straight welding,argon arc welding and so on |
|
Model |
HCD--GY |
|
Volum( m³/h) |
200-800 |
|
Power(W) |
1500-3000 |
|
Pressure(pa) |
20000-40000 |
|
Current(A) |
2.27-7.87 |
|
Filtering area( m³) |
20-23 |
|
Noise(dBA) |
68-74 |
|
Installation |
Installed on the ground(mobile) |
|
Size(cm) |
550*600*1250/600*650*1350 |
|
Compressed air(mpa) |
0.5-0.6 |
|
Weight(kg) |
117-180 |
|
Filter Life |
8-12months |
HCD-GY series have a high pressure fan. At first, welding fume is inhaled into thr purified host by the high pressure fan.Then, it will go through two filter layers. One is large particles spark filter, and the other is the filtration of tiny dust particles(PTFE filter). The filtering efficiency can be up to 99%.
Optional Accessories:
1.Pressure gauge
2.Dust drawer
3.Spark eliminate board
4.Activated carbon filter
