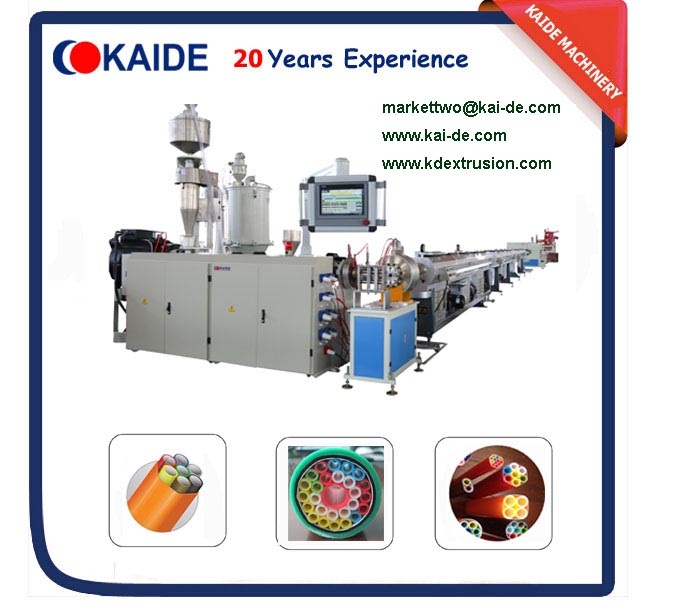

Microduct Bundles Pipe Extrusion Line
產品型號：Microduct Bundles Pipe Machine
產品分類：自動化設備/產業機械 / 鋼管製造機 / 切管機
產品特色
This Microducts bundles extrusion machine is used to produce the new type communication pipe, called tube bundle. The tube bundle is made by one micro duct or more than one micro ducts grouped according to a certain arrangement order with outer sheathing layer. It can hold more conduits in the limited space.
產品規格
This Microducts bundles extrusion machine is used to produce the new type communication pipe, called tube bundle. The tube bundle is made by one micro duct or more than one micro ducts grouped according to a certain arrangement order with outer sheathing layer. It can hold more conduits in the limited space.
High Precision Mechanical Components
(1)Specially designed die head moulds according to the numbers of tube bundles.
(2)Reasonable uncoiler layout according to numbers of tube bundles .
(3)Stable performance haul-off machine,equipped with 8 air cylinder.
| ● Micro tube size and tube bundle information: | |||||
| Item No. | Outer | Inner | Thickness | Direct Installation Tube Bundle | Direct bury Tube Bundle |
| Diameter | diameter | (mm) | (Tube number) | (Tube number) | |
| (mm) | (mm) | ||||
| 1 | 5 | 3.5 | 0.75 | 2; 4; 7; 12; 19; 24; 27Outer thickness: 1.7mm | 2; 4; 7; 12; 19; 24; 27; Outer thickness:3.4mm |
| 2 | 7 | 3.5 | 1.75 | ||
| 3 | 7 | 5.5 | 0.75 | ||
| 4 | 8 | 6 | 1 | ||
| 5 | 10 | 8 | 1 | 1; 2; 4; 7; Outer lthickness: 1.7mm |
1;2;4;7; Outer thickness: 3.4mm |
| 6 | 12 | 8 | 2 | ||
| 7 | 12 | 10 | 1 | 1;2;4;7; Outer thickness: 1.7mm |
1;2;4;7; Outer thickness: 3.4mm |
| 8 | 14 | 12 | 1 | ||
| 9 | 14 | 10 | 2 | ||
| 10 | 16 | 12 | 2 | ||
| 11 | 16 | 14 | 1 | ||
