PEXB Pipe Making Machine 16MM-32MM
產品型號:pexb pipe machine
產品分類:自動化設備/產業機械 / 鋼管製造機 / 切管機
產品特色

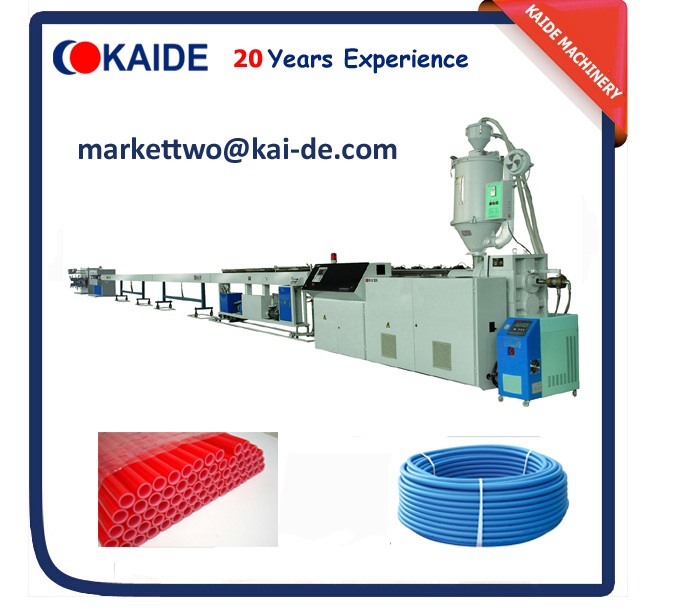

High Speed Silicone Cross-linked PE-Xb Pipe Line
The high speed PE-Xb pipe extruder adopts special structured cross-linking reaction type screw, to realize the stability and good plasticizing quality of high speed extrusion.
產品規格
High Speed Silicone Cross-linked PE-Xb Pipe Line
The high speed PE-Xb pipe extruder adopts special structured cross-linking reaction type screw, to realize the stability and good plasticizing quality of high speed extrusion.
Line Model | Screw Diameter | L/D | Production Scope | Production Speed | Nominal Power |
SJ-80 | j80mm | 30:01:00 | j20-32mm | 25m/min | 115KW |
SJ-65 | j65mm | 30:01:00 | j20-32mm | 15m/min | 72KW |
Pressure-Storage Reaction Die Head
(1) Special designed pressure-storage reaction type die head of this pex-b pipe line has overcome the stress orientation of polymer molecular chain during the pipe formatting.
(2) Realizing the constant pressure extrusion of the pipe. The stability of extrusion pressure is the essential condition for high speed production.
Vacuum Calibrators
(1)Patented vacuum calibrators are special designed multi-sheet water bath type,
(2) Realize the even and effective calibrating & cooling effects.
Haul-off Machine
(1) The pex-b pipe machine adopts multi-group roller clamping type belt haul-off machine, with high & stable pulling speed
(2) Completely overcomes the vibration or slipping problem of traditional rubber block haul-off machine.
PLC Control System
The PEX-B pipe making machine adopts original imported new generation PLC control system which ensures the high speed synchronous control and reliable operating of the whole production line.
