Round Drip Irrigation Pipe Machine 16mm,20mm
產品型號：Round drip irrigation
產品分類：自動化設備/產業機械 / 鋼管製造機 / 切管機
產品特色

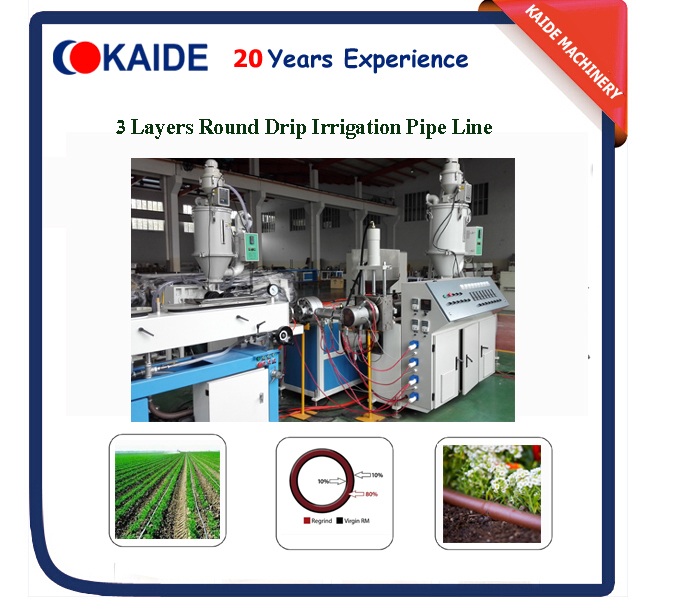

High Speed Round Drip Irrigation Pipe Line
The Round Drip irrigation pipe machine, is independently developed by KAIDE company, with high highest speed and stable performance.Have been exported to many countries and areas: Egypt, Iran, Saudia Arabia, Morrocco, Cyprus, Mexico,Ukraine, Russia, Korea, etc...
產品規格
High Speed Round Drip Irrigation Pipe Line
The Round Drip irrigation pipe machine, is independently developed by KAIDE company, with high highest speed and stable performance.Have been exported to many countries and areas: Egypt, Iran, Saudia Arabia, Morrocco, Cyprus, Mexico,Ukraine, Russia, Korea, etc...
| Line Model | Screw Diameter | L/D | Production Scope | Production Speed | Nominal Power |
| SJ-60 | Ф60mm | 36:1 | Ф8-20mm | 60m/min | 91KW |
| SJ-65 | Ф65mm | 33:1 | Ф8-20mm | 35m/min | 65KW |
| SJ-45 | Ф45mm | 30:1 | Ф8-20mm | 15m/min | 37KW |
Dripper sorting & conveying system
This drip irrigation pipe line adopted centrifugal screening device for drippers screening & sequence. With below advantages,:
(1)High precision screening
(2) Dripper identifying speed 400pcs/min
which ensure the precise dripper supply during high speed production.
Punching system
(1)The round drip irrigation pipe line adopted mechanical punching mode, automatically tracking the pipe production speed, guaranteed the accuracy of punching position.
(2)2 or 4 or 6 Holes punching
(3) Punching speed: 400pcs/min
Synchronous control
The synchronous control is realized from dripper feeding, screening & sequence, conveying & inlaid, haul-off, to punching and coiling, which ensures the precise control and stable running of high speed production.
