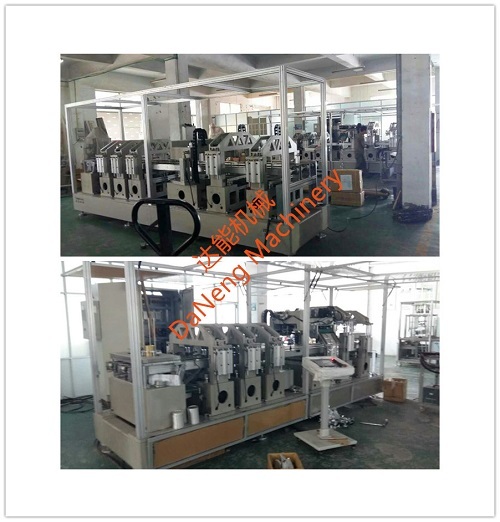

Easy peel-off aluminum foil ends machine
產品型號：DN-2
產品分類：包裝印刷暨食品及製藥機械 / 包裝機械 / 鋁箔等金屬材料
產品特色
1. The operating system adopts touch screen operation, can online parameter setting and all kinds of alarm information display.
2.Easy tear cover production equipment performance: the circle - cutting - edge to blunt cover, seal - embossing - end procuce
3.Production speed: capacity 90-180 PCS/minute
4.Can be made aluminum foil easy tear cover of 202 #, 206 #, 209 #, 211 #, 300 #, 307 #, 309 #, 400 #, 401 #, 502 #, 603 # and 701 #
5.it is suitable for tinplate tank, paper tank, PET plastic tank, widely used in food, dried fruit milk powder, coffee powder, seasoning, chicken powder, tea, medicine, industry oil and other packaging.
產品規格
System Configuration
Electric control part:
1. MR - JE mitsubishi servo motor:14/sets
2. Mitsubishi 16 Axle module
3. PLC 2/sets, temperature control module, 10 inch screen,Omron sensor
4. main electrical components: Schneider
5. Planetary reducer faston/kimpo 14/sets
KPL90:5/sets KPL115:3/sets KPL180:6/sets
- High frequency fission machine:2/sets
water-cooling system:1/set
7. pneumatic element:SMG
2.Parameter:
1. Production platform: dual channel
2. Style: FJZ-Z
3. Sealing percent of pass:99.5%
4. KW:50(380V 50HZ)
5. Size:5000mmx950mmx2400mm
6. Weight: 5500KG
7. Air pressure: ≥0.6Mpa
Airshed: ≥0.6M3/Min
