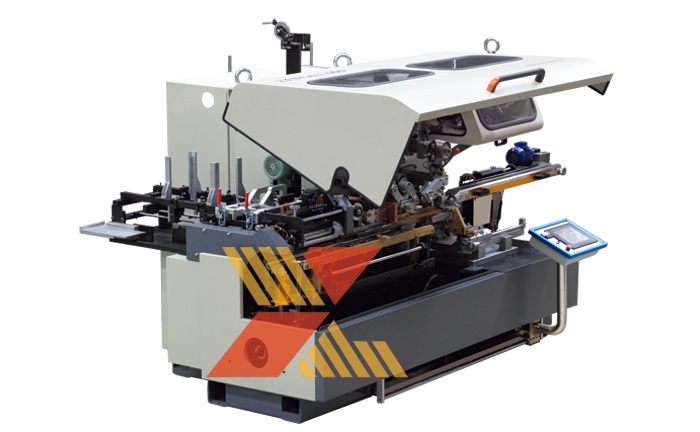

Fully-Automatic Round Tin Cans Welding Machine for Food Can
產品型號:YD-600
產品分類:自動化設備/產業機械 / 自動化設備 / 自動化焊接設備
產品特色
DODO-S600 Can Body Welder:
It's the first model of our new product series, XINCAN Series. This model was developed in early 2012, and have been serving in our customers' factories since then. Because of its high performance, it received high praise from our customers.
Features:
It adopts updated technology and advanced techniques;
With characters of high precision, flexibility, easy and safety in operation;
Economic use in raw material and energy, minimal reject rates etc.;
With Metallic cover, better looking and saver.
產品規格
Main Technical Parameter:
Welding Speed*: Max.66m/min
Production*: Max.550pcs/min
Body Diameter: 52-153mm
Body Height: 70-320mm
Sheet Thickness: 0.16-0.31mm
Copper Wire Diameter*: 1.24-1.38mm
Overlap: 0.4-0.5mm
Dimensions: 3400x2400x2400mm
Weight: 5000kg
Depending on body diameter, height, sheet thickness and material quality.
