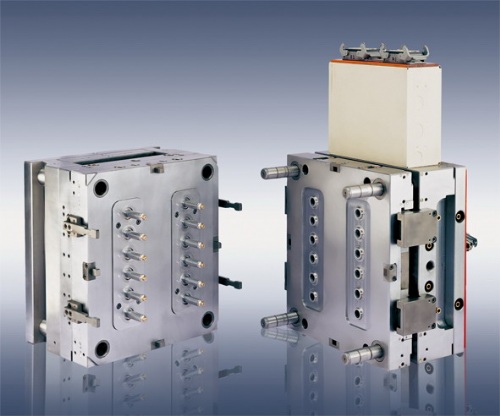

Cosmetic Tube
產品型號：Lan 166 x 18
產品特色
This tube is made for a famous French cosmetic brand. The thread on head of tube has to be "not too loose and not too tight", easy to open and close. The part surface has to be very neat / smooth for laser printing after corona treatment. So all inserts of cavities and cores have to be very precise and well polished. As the production cycle time is very short with high injection presure, the long inserts have to be very strongly fixed but also need to be replaced easily. We worked out a special insert structre to achieve that and customer is very satisfied.
產品規格
Part: Cosmetic Tube
Injection Machine: 350 Tons
Material: Polyethylene
Mold Weight: 650 kgs
No. of Cavity: 12
Steel: Buderus 1.2344 ESR
Hot Runner System: Temec
Latch: Hasco Locking Unit
Component Spec.: Hasco
