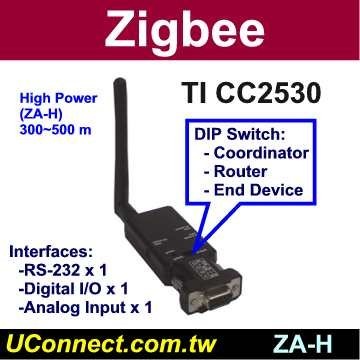

High Power Zigbee RS-232 adapter
產品型號：ZA-H
產品分類：自動化設備/產業機械 / 自動化設備 / 工業用機器人及週邊設備
產品特色
uConnect
Ubiquitous Connect
©2012 All rights reserved by Uconnect
Specifications:
1. Solution: TI CC 2530 + CC 2591 (High power)
2. Coverage: 300~500 m (High power) (The actual distance is depend on the real
environment and the antenna. For reference only)
3. Tx. Power: 18 dBm (High power)
4. Rx. Sensitivity (Nominal): -95 dBm (High power)
5. Baud Rate: Supports 1.2/2.4/4.8/9.6/19.2/38.4/57.6/115.2/230.4 Kbps
6. Connection: Point to Multi-points
7. UART Interface: TxD, RxD, GND, CTS/RTS
8. RS-232 Interface: D_SUB 9-pin female
9. Standard: 2.4 GHz IEEE 802.15.4 / ZigBee Pro Stack
10. Data rate: 250Kbps
11. Data Bit: 8 bit
12. Frequency: 2.4GHz~2.5 GHz
13. Modulation: DSSS
14. Antenna: SMA female + external dipole antenna
15. Antenna Impedance: 50 ohm
16. Power Supply: +5 to +6 V DC
17. Current Consumption: TX: 35.5 mA @ +4.5 dBm, RX: 24 mA
18. Operation Temperature: -20°C to +75°C
19. Dimensions: 88 mm (L) x 34 mm (W) x 15 mm (H) (BT-232B), Antenna: 11 cm
Remark: All contents are subject to change without notice.
Inquire the product: [email protected]
Features:
1. 3 in 1 firmware: Coordinator, Router and end Device
2. TI CC2530 + 2591, High power mode
3. Support Serial Port, Digital I/O and Analog Input interfaces:
4 Digital I/O:
Remote control logic high (MIN 2.4V), low (MAX 0.5V).
Output drives capability 20mA. , Max Voltage 3.3V.
5. Analog Input(ADC): Max Voltage 3.3V, 8bit- resolution
Applications:
1. Home automation, building automation
2. Cable replacement
3. SCADA system, Wireless sensor network, Internet of Things
4. Robot, unmanned carrier
5. PDA, POS, receipt printer, bar code reader, RFID, card reader
6. Power meter, Smart energy, Green power, LED light
產品規格
Specifications:
1. Solution: TI CC 2530 + CC 2591 (High power)
2. Coverage: 300~500 m (High power) (The actual distance is depend on the real
environment and the antenna. For reference only)
3. Tx. Power: 18 dBm (High power)
4. Rx. Sensitivity (Nominal): -95 dBm (High power)
5. Baud Rate: Supports 1.2/2.4/4.8/9.6/19.2/38.4/57.6/115.2/230.4 Kbps
6. Connection: Point to Multi-points
7. UART Interface: TxD, RxD, GND, CTS/RTS
8. RS-232 Interface: D_SUB 9-pin female
9. Standard: 2.4 GHz IEEE 802.15.4 / ZigBee Pro Stack
10. Data rate: 250Kbps
11. Data Bit: 8 bit
12. Frequency: 2.4GHz~2.5 GHz
13. Modulation: DSSS
14. Antenna: SMA female + external dipole antenna
15. Antenna Impedance: 50 ohm
16. Power Supply: +5 to +6 V DC
17. Current Consumption: TX: 35.5 mA @ +4.5 dBm, RX: 24 mA
18. Operation Temperature: -20°C to +75°C
19. Dimensions: 88 mm (L) x 34 mm (W) x 15 mm (H) (BT-232B), Antenna: 11 cm
Remark: All contents are subject to change without notice.
