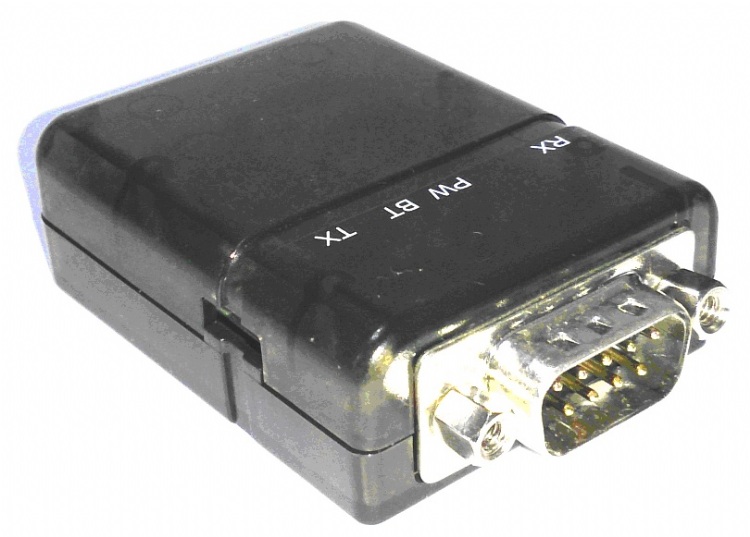

Bluetooth V4.0 BLE RS-232 adapter
產品型號：BLE-232
產品特色
Bluetooth low energy (BLE) single mode module is targeted for low data rate transmission. The software interface supports the GATT service via UUID.
The single mode radio enables it to connect to the dual mode Bluetooth products already in the market, as well as other Bluetooth low energy devices. It supports the iOS, Android, Microsoft and most mobile platform.
Applications:
Automation
Sports & fitness
Health care & Consumer wellness
Home application
Automotive
Security & Proximity
Data Transferring
產品規格
Bluetooth low energy (BLE) can be uesd in
1.Automated machinery data transmission
2.DNC wireless transmission
3.Creating industrial and factory environment in bluetooth V4.0
Specifications:
1. Baud Rate: Supports 1.2/2.4/4.8/9.6/19.2/38.4/57.6/115.2/230.4/460.8/921.6 Kbps
2. Coverage: Up to 100 m
3. Connection: Point-to-point (pico net)
4. Signal: TxD, RxD, GND, CTS/RTS
5. RS-232 Interface: D_SUB 9-pin female
6. Standard: Bluetooth specification version 2.0+EDR
7. Profiles: Serial Port Profile
8. Data Bit: 8 bit
9. Frequency: 2.400 to 2.4835 GHz
10. Hopping: 1,600/sec, 1MHz channel space
11. Modulation: GFSK-1 Mbps, DQPSK-2 Mbps, and 8-DPSK-3 Mbps
12. Tx. Power: Max. 18 dBm (Class 1)
13. Rx. Sensitivity: -86 dBm typical
14. Antenna: Chip antenna or SMA female + external antenna
15. Antenna Gain: Chip antenna max. 1 to 2 dBi
16. Power Supply: +5 to +6 V DC
17. Current Consumption: Max. 90 mA
18. Operation Temperature: -20 to +75 Centigrade Degrees
19. Dimensions: 88 mm (L) x 34 mm (W) x 15 mm (H) (BT-232B), Antenna: 11 cm
Remark: All contents are subject to change without notice.
