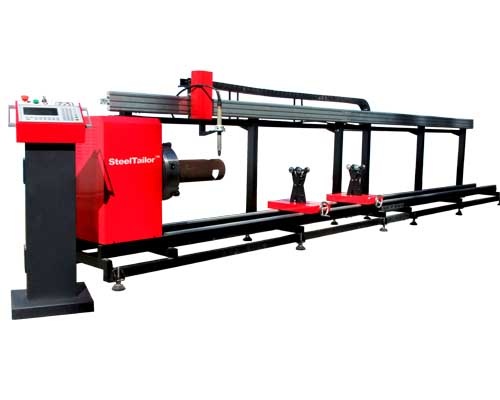

SteelTailor TubeTailorII CNC tube cutting machine
產品型號:TubeTailorII
產品分類:自動化設備/產業機械 / 其他產業機械 / 其他
產品特色
TubeTailor II CNC Cutting Machine
1. Rotate the handle to adjust and make the pulley wheel close to the tube wall for achieving stable cutting process.
2. Vibration reduction technique ensures stability and brings better cutting quality
3. Diameter of tubes :80~400mm
4. wall thickness <=8mm
5. Control cabinet with roller wheel, easy for movement and operation
6. Butt joint installation for two sections of machine tool
產品規格
SteelTailor TubeTailorII CNC tube cutting machine
SteelTailor TubeTailorII CNC tube cutting machine is an simple and efficient CNC tube cutter.
Major Functions:
- truncation cutting,
- slot cutting, square hole cutting,
- unfold tube cutting and letter cutting,
- bevel tee junction cutting,
- Y junction tube cutting,
- tee junction main tube cutting,
- tee junction branch tube cutting
- branch cutting for multi-tube joint.
These functions make TubeTailorII CNC tube cutting machine more powerful than TubeTailorI CNC tube cutter.
TubeTailor I vs TubeTailor II
|
TubeTailor I |
TubeTailor II |
Longitudinal effective cutting |
2000mm |
6000mm |
Diameter of tubes |
I60~I260mm |
I80~I400mm |
thickness |
≤ 8mm |
|
Input power |
300W |
1500W |
Z axis and THC |
Electric up and down |
Automatic arc voltage THC |
Nesting Software |
NO |
YES |
TubeTailor II CNC Cutting Machine
- Rotate the handle to adjust and make the pulley wheel close to the tube wall for achieving stable cutting process.
- Vibration reduction technique ensures stability and brings better cutting quality
- Diameter of tubes :I80~I400mm
- wall thickness ≤ 8mm
- Control cabinet with roller wheel, easy for movement and operation
- Butt joint installation for two sections of machine tool
TubeTailor II is an economical CNC tube cutting machine with SteelTailor portable design. It is suitable for cutting tubes with diameter from 80 to 400mm and cutting various graphs in metal tubes, which have thickness of less than 8mm. Besides, it can work for different butt joint after welding tubes.
Program code can be checked and saved in controller or USB
Vibration reduction technique ensures stability and brings better cutting quality.
Technical Parameters
Items |
Description |
Power
|
AC220 V 50/60Hz 1.5KW |
Tube Diameters |
I80—I400mm |
Wall Thickness |
≤8mm
|
X-axis Effective Cutting Length
|
6000mm
|
Z-axis Effective Lifting Distance
|
110mm
|
THC
|
Automatic arc voltage THC
|
MAX Cutting Speed
|
2000mm/min
|
MAX Running Speed |
3000mm/min
|
X Positioning Precision
|
±0.2mm/10mm
|
X Repeatability
|
±0.2mm/10mm
|
