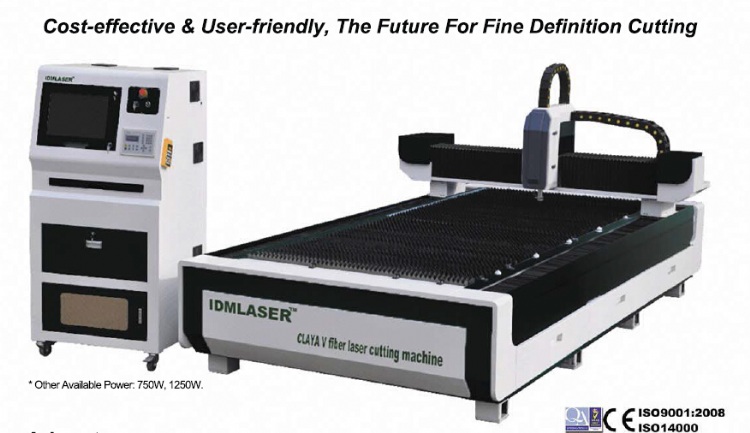

IDMLASER CLAYA V-1325 500W fiber laser cutting machine

Cost-effective&User-friendly,The Future for find definition cutting

Advantages:

1.Smaller focal spot, better cutting quality.

2. New laser generator with high performance, remarkable price advantage.

3. Extremely low cost for maintenance: no need of laser working gas; no need to debug optical path.

CLAYA V is an economical fiber laser cutting machine. With advantages of low cost, easy maintenance and high efficiency, it is more competitive than CO₂ laser machines. CLAYA V has been widely used to cut carbon steel, silicon steel, stainless steel, aluminium alloy, titanium alloy, galvanized plate and other sheet metals.

1. Specialized laser generator with high efficiency

 (1) Over 30% conversion rate (electrical power to light), largely lower the power consumption.

 (2) No need to consume extra gas.

 (3) Semiconductor modular and redundant design, no optical lens in resonant cavity, no start time; high stability, no need to adjust and maintain.

 (4) 1070nm wavelength, 1/10 of CO₂ wavelength; good quality of output laser beam, high power density, excellent cutting capability.

(5) Protective lens inside the cutting head, extremely low consumption of reflector, focus lens and other valuable consumables.

 (6) Small size, light weight and small covering area.

2. High-precision Z axis height control
Non-contact sensing device enables stable Z axis floating function under control of system, which prevents the uneven plate from affecting the cutting quality. That’s why this fiber laser cutting machine enjoys high rate of finished products.

3. Highly-stable machine tool
Cross beam and upright column are treated by thermal aging process to eliminate welding stress (dimension of furnace: 3m*4m*9m).

Sand blasting and anti-corrosive primer are applied to guarantee good surface.

4.   Optical system with preview function

    Optical system has full-sealed structure, preview and focus indicating functions.

5. Heavy-load design

Equipped with the latest external water cooling system, which runs with low noise. High precision of temperature adjustment guarantees reliability and continuous work.

6. Red Light Indicator

The red light collimator can help operators to calibrate the position of laser head.

CO₂ Laser VS Fiber Laser
