water cooling lab equipment 5.1KW 220V 50/60Hz

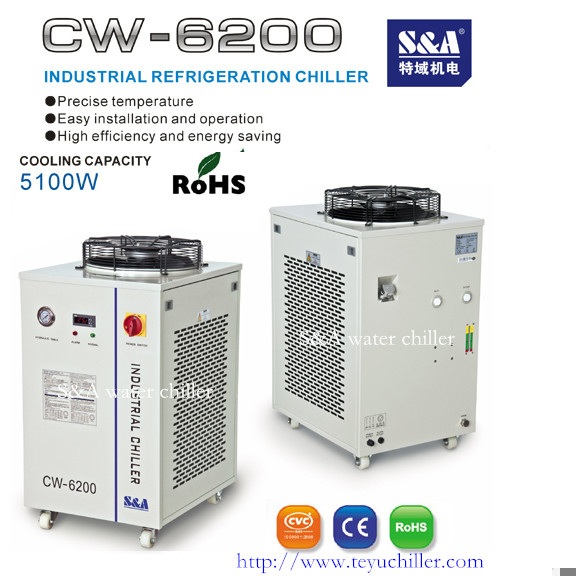

Water chiller CW-6200 is developed and produced by S&A company, it is applied to cool lab equipment. CW-6200 has 5.1KW cooling capacity, ±0.5℃ stability, and Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;

Water cooling lab equipment parameter:

 Voltage:220V; Frequency: 50/60Hz; Refrigerant: R-22 / R-410a

Pump power: 0.05KW/0.1KW/0.37~0.75KW; Tank capacity:15L

Max. lift:12M/25M/28~53M; Max. flow: 13L/min- 70L/min

N.W: 69Kgs; G.W: 79Kgs;

Dimension : 67 X 47 X 89 cm  (L X W X H); Packing dimension: 74 X 60 X 109 cm(L X W X H)

About S&A Brand

S&A produces more than 60000 units of industrial chillers by year, we always insist on Quality First in design and production.

“S&A” and “TEYU” have been enjoying high reputation among hundreds of manufacturers which are from both at home and abroad, and export rate reaches above 60%
