Water Cooled Recirculating Chiller for laser cnc router

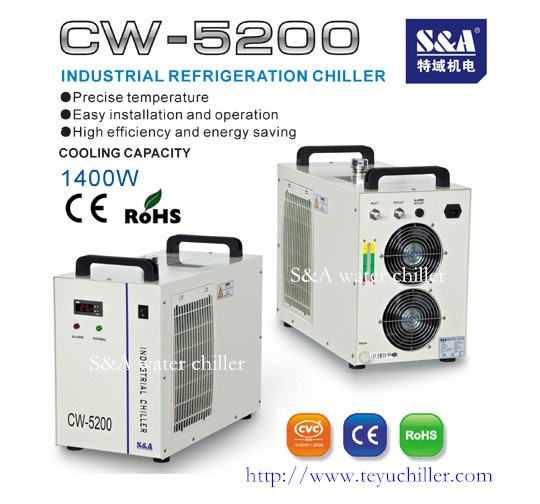

CW-5200 recirculating chiller is developed and produced by S&A company, it can handle virtually any cooling requirements in laser cnc router.

S&A CW-5200 water cooled chiller’s cooling capacity up to 1.4KW and the thermoelectric control in ±0.3℃ precision and temperature control range in 5-35℃. It is popular for its 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature. With that 1 key solution, customers no longer need to worry about the condensate water for temperature change and extend equipment life.

CW-5200 water chiller parameter:

 Voltage:110V-220V; Frequency: 50/60Hz; Refrigerant: R-22 / R-134a / R-410a

Pump power: 0.03KW/0.05KW/0.1KW; Tank capacity:6L

Max. lift:10M-25M; Max. flow: 10L/min- 16L/min

N.W: 26Kgs; G.W: 29Kgs;

Dimension : 58 X 29 X 47 cm (L X W X H); Packing dimension: 70 X 43 X 58 cm (L X W X H)

About S&A Brand

S&A produces more than 60000 units of industrial chillers by year, we always insist on Quality First in design and production.

“S&A” and “TEYU” have been enjoying high reputation among hundreds of manufacturers which are from both at home and abroad, and export rate reaches above 60%
