Water-cooled chiller for Fabric Laser Cutting machine

CW-5000 water-cooled chiller is developed and produced by S&A company，it is applied to cool 80W-100W CO2 laser of Fabric Laser Cutting machine.

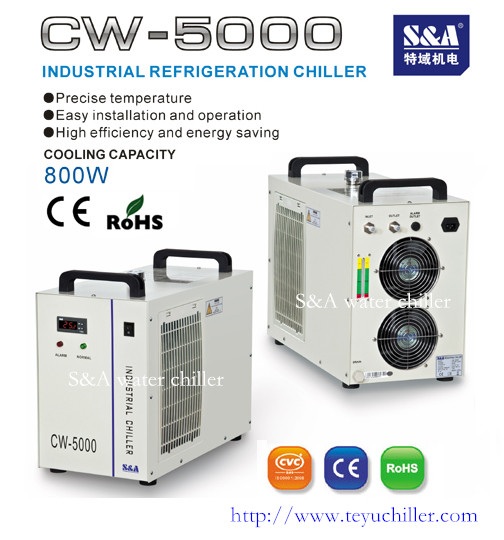

S&A CW-5000 is refrigeration type industrial water chiller of 800W cooling capacity and the thermoelectric control in ±0.3℃ precision. It’s mainly used to have the heat generated during the laser device working that gone through the refrigerating cycle in compressor refrigeration system and eventually transferred to the air. The water temperature is able to be adjusted.

CW-5000 water chiller parameter:

Voltage:110V-220V; Frequency: 50/60Hz; Refrigerant: R-134a

Pump power: 0.03KW/0.051KW/0.1KW; Tank capacity:6L

Max. lift:10M-25M; Max. flow: 10L/min- 16L/min

N.W: 24Kgs; G.W: 27Kgs; Dimension : 58 X 29 X 47 cm (L X W X H); Packing dimension: 70 X 43 X 58 cm (L X W X H)
