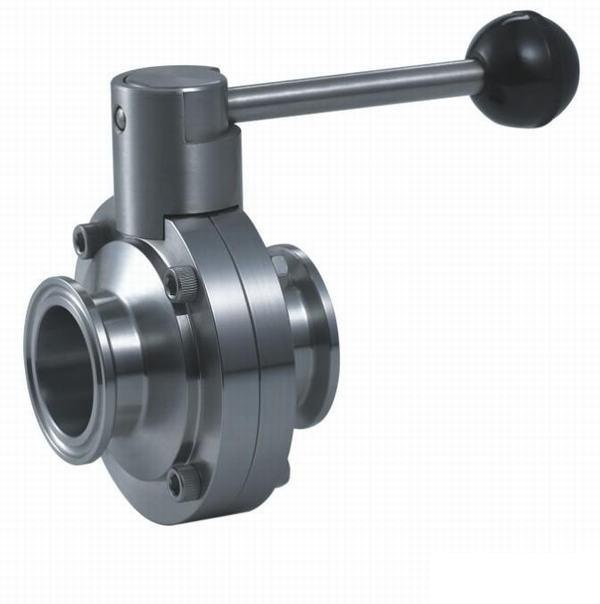

hygienic clamped butterfly valve
產品型號：ft1005
產品特色
Light weight and easy to operate, the butterfly valve is firmly established as the process industry’s standard valve for "on/off" control applications. Suitable for working pressures of up to 10 Bar, (1" to 4") the robust design and simple operating mechanism, make these low maintenance valves ideal for low viscosity liquid transfer.
Size: from 1" OD - 4" OD
Standard: ISO，IDF，DIN, SMS, 3A, RJT, DIN, IDF
EPDM seal as standard - Viton & Silicone seals also kept
12 position plastic handle - c/w 304 stainless steel gripper bar as standard
4 position "pull" handle also can be supplied
Full actuation & control package available
BODY: Fully machined from 316 forging.
DISC: Fully machined, highly polished - Ra less than 0.6 μm
DISC DRIVE HEAD: 8mm x 12mm
PRESSURE: For use up to = 150psi / 10bar.
End connections:
Plain weld ends
Clamp
RJT male and female
IDF male and female
DIN 11851 male and female
SMS male and female
產品規格
Light weight and easy to operate, the butterfly valve is firmly established as the process industry’s standard valve for "on/off" control applications. Suitable for working pressures of up to 10 Bar, (1" to 4") the robust design and simple operating mechanism, make these low maintenance valves ideal for low viscosity liquid transfer.
Size: from 1" OD - 4" OD
Standard: ISO，IDF，DIN, SMS, 3A, RJT, DIN, IDF
EPDM seal as standard - Viton & Silicone seals also kept
12 position plastic handle - c/w 304 stainless steel gripper bar as standard
4 position "pull" handle also can be supplied
Full actuation & control package available
BODY: Fully machined from 316 forging.
DISC: Fully machined, highly polished - Ra less than 0.6 µm
DISC DRIVE HEAD: 8mm x 12mm
PRESSURE: For use up to = 150psi / 10bar.
End connections:
Plain weld ends
Clamp
RJT male and female
IDF male and female
DIN 11851 male and female
SMS male and female
