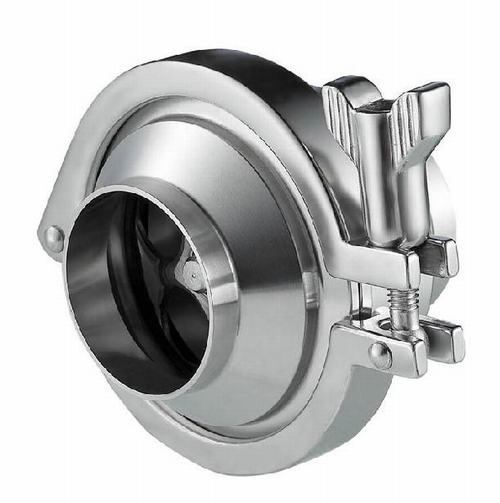

Hygienic Non Return Valves
產品型號：ft1004
產品特色
Manufactured in 316L SS material the non return valve has a light action spring that allows the valve to operate in vertical and horizontal positions. The piston face is kept as large as possible to minimise the pressure drop and to also to allow particles to pass through the spider support.
Suitable for C.I.P applications the valve is easily dismantled for sterilisation and the seals supplied as standard are EPDM with others materials available to order, such as silicone and Viton® FKM.
Maximum working pressure: 10 Bar
Size range: 1" to 4"
Polishing: Mirror Polish(Ra0.5-0.8um), Semi-polished(Ra 1.6-3.2um)
Standard: ISO, DIN, 3A, SMS, IDF, AS, BS
End Connections: Plain weld end, Clamp, RJT, IDF, DIN 11851, ILC, SMS and BSP
產品規格
Manufactured in 316L SS material the non return valve has a light action spring that allows the valve to operate in vertical and horizontal positions. The piston face is kept as large as possible to minimise the pressure drop and to also to allow particles to pass through the spider support.
Suitable for C.I.P applications the valve is easily dismantled for sterilisation and the seals supplied as standard are EPDM with others materials available to order, such as silicone and Viton® FKM.
Maximum working pressure: 10 Bar
Size range: 1" to 4"
Polishing: Mirror Polish(Ra0.5-0.8um), Semi-polished(Ra 1.6-3.2um)
Standard: ISO, DIN, 3A, SMS, IDF, AS, BS
End Connections: Plain weld end, Clamp, RJT, IDF, DIN 11851, ILC, SMS and BSP
