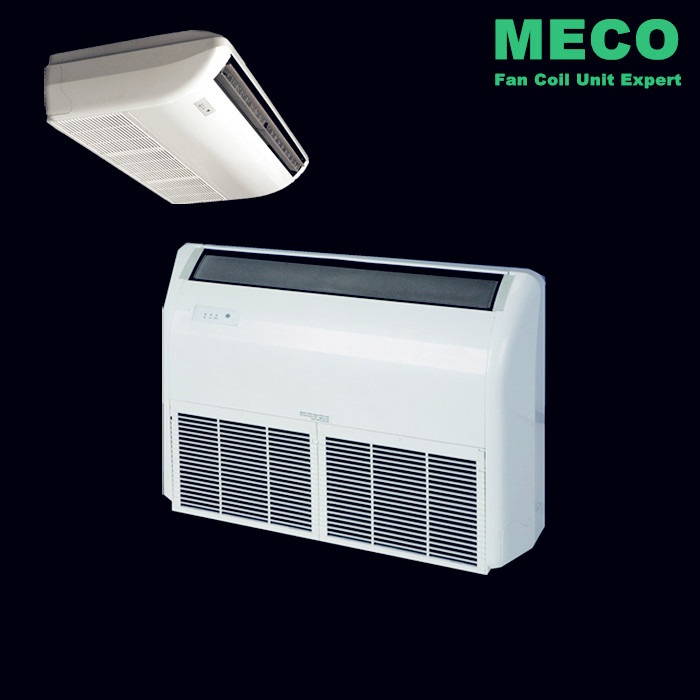

Floor ceiling type chilled water fan coil unit-Air condition
產品型號:FP-51/68/85/102/136/170/204/238
產品特色
Water chilled Ceiling floor type Fan coil unit 300CFM -1400CFM
ceiling floor type fan coil
ceiling&floor
air volume=2380m3/h(1400CFM)
2 pipe and 4 pipe is optional
CE & ROHS standard
It can be installed on the floor or under the ceiling with the features of easy and flexible installation, wide range and long distance air supply,good performance,various control functions and slim body,it is especially applicable to the hotel office,meeting room with low space room.
Ceiling/floor type fan coil
1.Diversiform installation way available to be installed under ceiling or placed on the floor,saves space maximum
2.Luxury appearance design,not only meet the cooling(heating) demand,but also beautify indoor decoration.
3.Auto swing function three-dimensional wide angle airflow, makes indoor airflow more even and enhances comfort of airflow
4.Elaborate structure design makes installation and maintenance more convenient.
產品規格
PERFORMANCE OF CEILING FLOOR TYPE FAN COIL(2 TUBE SYSTEM) | |||||||||||
model(2 tube system) | MFP-51ZDM | MFP-68ZDM | MFP-85ZDM | MFP-102ZDM | MFP-136ZDM | MFP-170ZDM | MFP-204ZDM | MFP-238ZDM | |||
power supply | 220V,50Hz,1Ph | ||||||||||
air volume | H | m3/h | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 | 2380 | |
M | 380 | 515 | 660 | 765 | 1040 | 1280 | 1550 | 1800 | |||
L | 260 | 340 | 430 | 530 | 710 | 860 | 1050 | 1280 | |||
static pressure | Pa | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||
cooling capacity | TH | H | W | 2700 | 3600 | 4500 | 5400 | 7200 | 9000 | 10800 | 12600 |
BTU/h | 9212 | 12283 | 15354 | 18425 | 24566 | 30708 | 36850 | 42991 | |||
SH | W | 1990 | 2730 | 3174 | 4261 | 5385 | 6746 | 8109 | 9062 | ||
BTU/h | 6790 | 9315 | 10830 | 14539 | 18374 | 23017 | 27668 | 30920 | |||
TH | M | W | 2485 | 3030 | 3752 | 4467 | 6499 | 7926 | 9389 | 10605 | |
W | 1571 | 2015 | 2450 | 3071 | 4278 | 5447 | 6669 | 7262 | |||
SH | L | W | 2078 | 2504 | 2950 | 3831 | 5660 | 7295 | 8619 | 8989 | |
W | 1212 | 1545 | 1844 | 2397 | 3317 | 4460 | 5300 | 5555 | |||
heating capacity | H | W | 4050 | 5400 | 6750 | 8100 | 10800 | 13500 | 16200 | 18900 | |
M | W | 2792 | 3970 | 4941 | 5740 | 7987 | 10557 | 13101 | 14011 | ||
L | W | 1788 | 2801 | 3533 | 3907 | 5464 | 7048 | 8714 | 9778 | ||
noise | H | 0Pa | dB(A) | 39 | 41 | 43 | 45 | 46 | 48 | 50 | 51 |
power input | H | 0Pa | W | 52 | 62 | 76 | 96 | 134 | 152 | 189 | 228 |
waterflow volume | m3/h | 0.46 | 0.62 | 0.77 | 0.93 | 1.23 | 1.54 | 1.85 | 2.16 | ||
water pressure dropping | kPa | 11.8 | 13.6 | 21 | 23 | 25 | 32 | 33 | 38 | ||
dimension of water(in & out)connection pipe | in | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ||
out | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | |||
coil | type | high efficient copper pipe to wear Hydrophilic aluminum coil | |||||||||
The maximum pressure | MPa | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | ||
dimension of water drain pipe | mm | ¢26 | ¢26 | ¢26 | ¢26 | ¢26 | ¢26 | ¢26 | ¢26 | ||
unit dimennsion | L×W×H | mm | 905*673*243 | 1288*673*243 | 1672*673*243 | ||||||
unit weight | kg | 26 | 28 | 30 | 38 | 40 | 42 | 45 | 45 |
