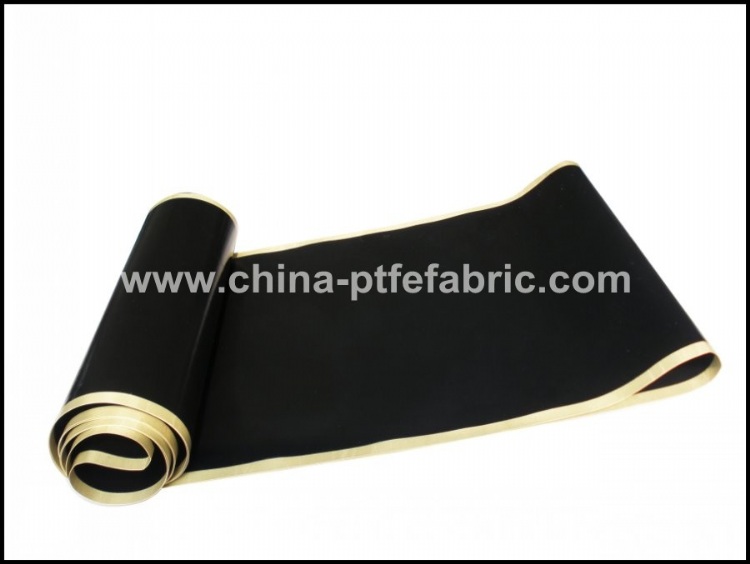

Endless PTFE Belt
產品型號:Belt
產品分類:包裝印刷暨食品及製藥機械 / 印刷機械 / 其他印刷機械
產品特色
Endless PTFE Belt means fusing belt without any joint. It is made from woven fiberglass or Kevlar coated with ptfe resin. The seamless belts have a smooth surface, excellent antistatic effect (black version), long life. It overcomed the shortage of traditional fusing belts with joint.
Endless PTFE Blet is mainly for fusing machines, such as Oshima, Kannegiesser, Meyer, Macpi, and many others. These belts are specifically engineered with the mechanical strength needed for the fusing and laminating industries. Its non-stick surface, thermal transfer and high temperature resistance characteristics ensure the flow of woven and non-woven materials through the fusing and lamination process.
Main Specification:
產品規格
Endless PTFE Belt | |||||||||
Standard Thickness: 0.35~0.40mm | |||||||||
Width: 20~1500mm | |||||||||
Perimeter: (mm) | |||||||||
1360 | 1380 | 1440 | 1470 | 1510 | 1520 | 1530 | 1540 | 1550 | 1560 |
1580 | 1600 | 1640 | 1660 | 1680 | 1730 | 1740 | 1780 | 1820 | 1830 |
1840 | 1850 | 1870 | 1880 | 1950 | 2000 | 2040 | 2100 | 2230 | 2240 |
2250 | 2310 | 2320 | 2420 | 2440 | 2450 | 2500 | 2600 | 2630 | 2750 |
2800 | 2820 | 2850 | 2880 | 2900 | 3050 | 3080 | 3090 | 3200 | 3450 |
3540 | 3590 | 3820 | 3850 | 3890 | 3900 | 3920 | 3930 | 4200 | 4270 |
5100 | 5270 | 5400 | 5640 | 5800 | 6000 | 6440 | 6700 |
