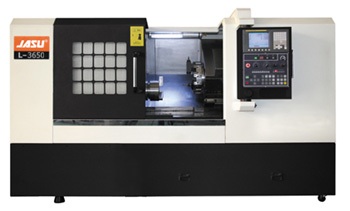

JASU Slant Bed CNC Lathe Machine
產品型號：L-3650
產品特色
Machine Features
This machine is a CNC lathe controllled by a microcomputer and driven by servo motors. It is suitable for turning cylindrical and taper faces, boring, grooving and cutting threads (including taper threads).
*The machine adopts ISO International Code, Keyboard Manual Date input, and it is also provided with program of power cut-off protection and the functions of automatic diagnosis and with RS232 interface.
*Drive:FANUC high-quality AC servo motors are used for longitudinal and transverse drive to ensure the high positioning accuracy and flexibility.
*System:FANUC 0i -TD CNC system and αi series AC servo motors are adopted.
*Hydraulic chuck, manual chuck, manual tailstock and hydraulic tailstock are available for your choice.
產品規格
Machine Parameters
|
ITEM |
|
L-3650 |
|
Processing Capacity |
Max. swing diam. over bed |
400 |
|
Max. swing diam. over slide |
160 |
|
|
Max. machining diam. |
360 |
|
|
Max. machining length |
450 |
|
|
Bed Tilt Angle |
45° |
|
|
Spindle |
Taper of spindle bore |
A2-5 |
|
Chuck |
6’’ |
|
|
Spindle bore |
56 |
|
|
Spindle speed |
5000RMP |
|
|
Feeding |
X/Z axis travel |
230/500mm |
|
X/Z axis rapid moving speed |
18/24m / min |
|
|
Lead screw |
3206/3206 |
|
|
Min. resolution |
0.001mm |
|
|
Motor |
Spindle motor |
5.5/7.5kw |
|
X/Z-axis servo motor |
2.5/2.5kw |
|
|
Coolant motor |
0.49kw |
|
|
Hydraulic motor power |
2HP |
|
|
Tailstock |
Tailstock travel |
450 |
|
Tailstock quill travel |
80 |
|
|
Tailstock quill dia. |
72 |
|
|
Tailstock quill taper |
MT4 |
|
|
A.T.C |
Turret type |
Hydraulic turret Y160 |
|
Turret capacity |
8-position / 10-position |
|
|
Tool shank size |
20x20mm |
|
|
Boring blade diameter |
Ø25mm |
|
|
General |
Power Capacity |
10KVA |
|
Overall dimensions |
2500x1675x1800 |
|
|
N.W. |
3200kg |
Machine Parts List
|
Item |
Brand |
|
Spindle&X/Z axes bearing |
JAPAN FAG/NSK |
|
Ball screw |
TAIWAN PMI/HIWIN C3 class |
|
Linear guideway |
TAIWAN PMI/HIWIN P4 class |
|
Spindle motor |
FANUC/ Mitsubishi (Servo) |
|
Hydraulic parts |
FANUC/ Mitsubishi (Servo) |
|
Hydraulic chuck&cylinder |
TAIWAN |
|
Hydraulic tool turret |
CHINA |
|
Lubrication oil pump |
CHINA |
|
Electric parts |
Germany Schneider |
|
Coolant pump |
Demark Grundfos |
|
Working lamp |
CHINA top LED |
|
Travel switch |
Germany BALLUFF |
|
Door class |
China top Armoured glass |
