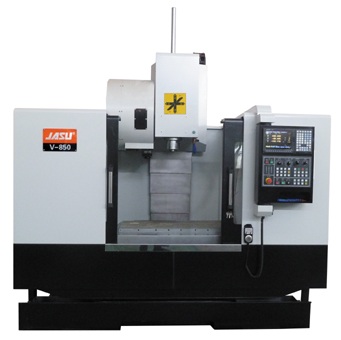

FANUC/ Mitsubishi CNC machining center for metal working
產品型號：V-1056
產品分類：工具機產業機械 / 綜合加工機 / 立式綜合加工機
產品特色
Machine Features
* Machine body is optimized design by computer CAD/CAM, with the structure of wide body and column.Casting by the quality Meehanite resin sand process. Times effect of aging treatment times,
* The adoption of C3 grade precise ball screws and the use of special bearing on the ball screw with pre-pull treatment as well as laser detective compensation have ensured the rigidity and precision.
* The adoption of balance weight block with motion-based device has prevented the spindle form vibration when weight-balanced block moves up and down, avoiding influencing the processing accuracy.
* The main base parts of machine are made from high-grade ,high quality gray casting iron with aging treatment, the guide rails with high-frequency quenching treatment and delicate grinding ,covered with low frictional coefficient TURCITE-B and dealt with delicate scraping ,having effectively improved motional quality of machine and necessary touching rigidity for cutting.
產品規格
Machine Parameter
|
ITEM |
V-1056 |
|
|
Worktable |
Table size/(L*W) |
1120 x 510 |
|
T-slot size/mm |
100x 18 x 5 |
|
|
Max load on the table/kg |
600 kg |
|
|
Travel |
Max. X/Y/Z axis travel |
1000 / 560 / 510 |
|
Spindle nose to table surface/mm |
110 ~620 |
|
|
Spindle nose to column surface/mm |
610 |
|
|
Spindle |
Spindle taper |
No.40 |
|
Max. Spindle speed/rpm (Standard) |
8000 rpm |
|
|
Spindle driven (Standard) |
1:1Timing Belts |
|
|
Spindle driven (Optional) |
Direct Connection |
|
|
Feeding |
Max cutting feed rate(M/min) |
10000 |
|
X,Y,Z rapid traverse |
36/36/36 m/min |
|
|
A.T.C |
Turret type |
Disc Type/ Hat Type |
|
Turret capacity |
20/24 |
|
|
Max. tool diameter and length |
Ø 80 x 200 |
|
|
Max. tool weight |
8 kg |
|
|
Tool shank type |
BT40 |
|
|
Servo Motor |
Spindle motor |
7.5/11 kW |
|
X/Y/Z axis servo motor (Fanuc) |
1.8 / 1.8 / 1.8 kW |
|
|
X/Y/Z axis servo motor (Mitsubishi) |
2.0 / 2.0 / 2.0 kW |
|
|
Coolant motor |
0.49 kW |
|
|
Accuracy |
Positioning accuracy |
±0.005mm |
|
Repeatability positioning accuracy |
±0.003mm |
|
|
General |
Air Requirements |
6KG |
|
Power Capacity |
15KVA |
|
|
Measurement |
2.7x2.4x2.5m |
|
|
N.W. |
5500 kg |
|
|
Standard configuration
1. Fanuc 0i mate MD controller 2. Standard CF card interface(FANUC 0I system) 3. RS-232 interface 4. RS-232 communication line 5. Three-color indicator 6. Working lamp 7. Heat Exchanger for Electrical Cabinet 8. Air blast through spindle 9. Chip cooling device 10. Automatic centralized lubrication system 11. Tool cabinet 12. Operation manual
|
Optional configuration
1. Mitsubishi M70 controller 2. Automatic tool measurement 3. Disc type 24 turret tools 4. Hat type 20 turret tools 5. Spiral chip removal device 6. Turntable (fourth axis) 7. Voltage regulator (220/380V) 8. Spindle Cooling System 9. APO(Automatic Power Off) 10. 10000RPM(BT40)Spindle 11. 12000RPM(BT40)Spindle |
