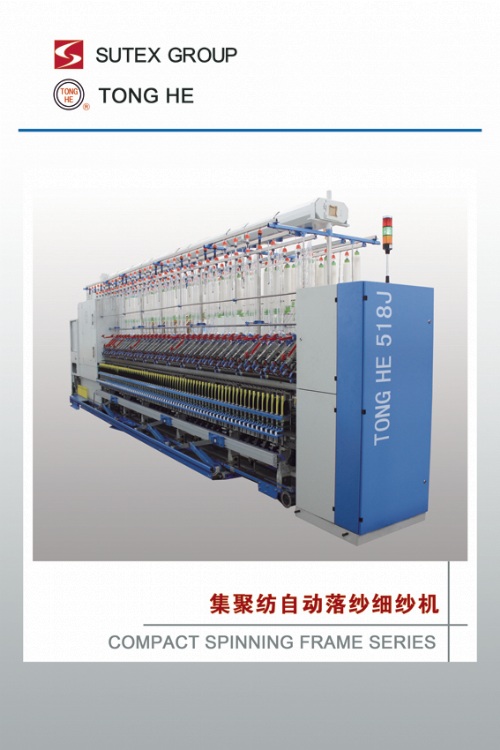

Ring Spinning Frame
產品型號：Compact Ring Spinning
產品分類：紡織染整成衣暨縫製機械 / 紡織染整機械 / 其他紡織機械
產品特色
This compact ring spinning frame is equipped with a airflow condensation system between drafting zone and twisting zone, which can minimize the spinning twisting triangle and improve quality of yarn through condensing fiber by negative pressure air. The machine is featured with high automation, easy operation, convenient maintenance and high speed. It's able to produce better quality of spun yarns with high effiency than normal ring spinning frame, The machine is applicable for spinning of cotton, cotton type chemical fibers or their blends with fiber length up to 65mm according to various demands of customers.
產品規格
Main features:
1. Narrow machine width with 700mm distance between the center of two opposite spindles on either side of the machine can make use of space effectively.
2. Quality aluminum alloy suction flute prevents sticking cotton and improve quality of yarn.
3. Step-lifting structure can be adjusted without changing the ratchet wheel, which ensures the form of yarn to be suitable for high-speed unwinding on the cone winder.
4. Main fan with one general air duct is adopted for airflow condensation negative pressure system.
5. Inverter is adopted to control negative pressure of compact spinning for all kinds of yarn count.
6. Modular design is adopted for compact spinning device, which makes the compact device simple structure, easy installation and maintenance.
7. The machine can be equipped with Over Head Cleaner, Core yarn Spinning Device, and Slub Yarn Device which are for option.
