產品規格

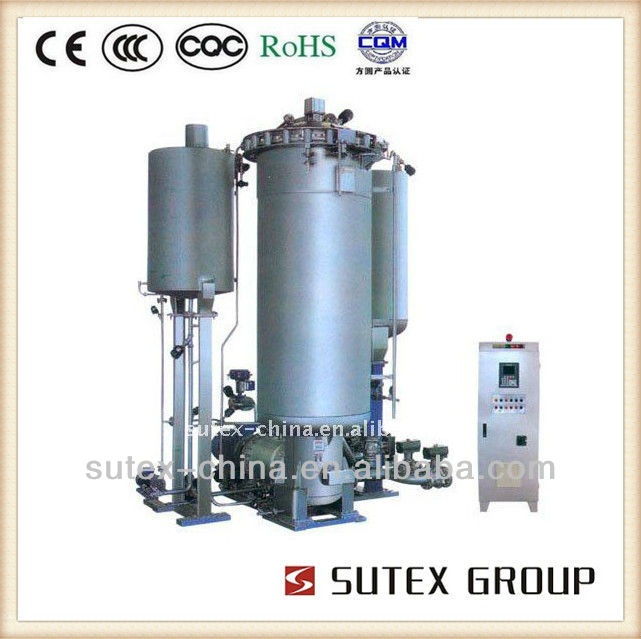

1)  Vertical main dyeing body

• Main body with SS316L Stainless Steel

2)  Sealing cover of main body

• Silicon rubber sealing belt, inside pressure sealing, main body with automatic pressure and pressure relief function

3)  Cover opening type of main body

• Cover opening by air cylinder

4)  Safety device

• Triple type cover safety interlock system
• Temperature & Pressure protection: main cylinder cover keep closing when there is
• pressure inside or inside temperature is over 80 Celsius degree
• Safety valve and pressure gauge equipped in the Main cylinder and heat exchanger
• With overload and fault alarming system

5)  Water feeding and draining

• Double feeding and Double drainage

6)  Heating type

• Internal heat exchanger

7) Temperature control

• Temperature ascend, descend, and keeping constant controlled by the computer

automatically

8)  Dosing system

• With open type dosing tank, material: SS321, with dosing mixer, water spray feeding in dosing tank

9)  Chemical dye feeding system

• Automatic feeding with high pressure feeding pump

10) Temperature detection

• Main cylinder surface with digital temperature display instrument, and PT100 temperature Sensor

11) Pressure system

• With Pressure controller, auto/manual pressure and pressure relief function

12) Main body treatment

• Surface sand blasting, Inside polishing

13) Overflow washing

• Installed on the cover, easy to overflow wash

14) Cone yarn carrier

• With one set cone yarn carrier, carrier spindle, disc are equipped with customer’s request

15) Control cabinet

• Made if stainless steel, surface polishing
• With LG brand PLC, made in China
• With Schneider brand inverter, made in China
• Main low voltage parts are Siemens brand (made in China), with electromagnetic valve, pressure adjusting valve, water-steam separator

16) Dyeing computer

• Chinese brand compute with LG brand PCL can realize automatic &manual function for water feeding, drainage, temperature ascend& descend, chemical dosing, overflow washing, main cover open &close, pressurization and pressure relief, alarm , etc.

17) Main pump

• Professional dyeing pump, Taiwan brand, with mechanical seal, pump controlled with inverter

18) Pneumatic valve

• Stainless steel ball valve for water feeding and draining, Stainless steel Y valve for the others.

19) Main cylinder liquid level

• Equip with YOKOGAWA pressure differential sensor(Japan brand)

20) Dosing tank liquid level

• Equip with bubble type pressure transmitter.
