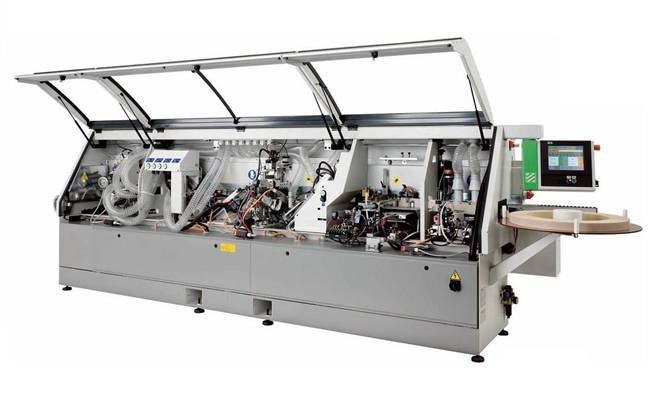

產品規格

Panel height:                                                             from 10 to 60 mm

Height of edge-banding material:                           from 14 to 64 mm

Thickness of edge-banding material in rolls:         from 0,4 to 3 mm

Thickness of edge-banding in strips:                        from 0,4 to 8 mm

Panel protrusion from track:                                     25 mm

Min panel length:                                                      140 mm

Min panel width (with length 140 mm):                  85 mm

Min panel width (with length 250 mm):                  50 mm

Track feed speed:                                                      12 m/min

Pneumatic connection:                                              7 bar

Working voltage:                                                       400 V / 50 Hz threephase+neutral

Control voltage:                                                         24 V - DC

Static frequency inverter:                                        200 Hz

Glue pot capacity:                                                     2 Kg (approx)

Glue pot heating time at ½ load:                 10 minutes (approx.)
