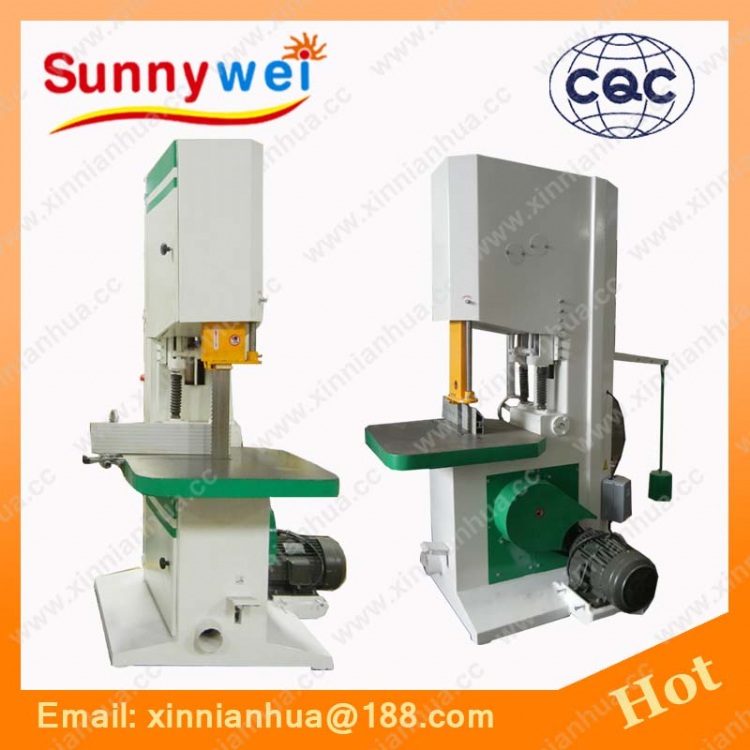

Wood Band Saw Machine MJ318
產品型號：MJ318
產品分類：木工產業機械 / 製材設備 / 帶鋸機(小割)製材機(帶鋸轉輪之直徑28英吋以上)
產品特色
Bandsaw Machine MJ318
1.width of saw blade:90mm
2.width of sawing wood:350mm
3.cast iron worktable
4.durable & stable
產品規格
Wood Band saw Machine MJ318
USE OF THE MACHINE
It is the band style to saw wood at straight line.Applied for processing square wood that have sawed by large saw machine.Also can process small size of wood material ,constructive batten or package board.
It is good to use in furniture factory,constructive industry and forestry processing etc.
MAIN SPECIFICATION AND TECHNOLOGY PARAMETER
| MODEL | MJ318 |
| Width of sawing wood | 350mm |
| Height of sawing wood | 400mm |
| Cutting speed of saw band | 30.14m/sec |
| Rotary speed of saw wheel | 720r/min |
| Max size of worktable (L×W) | 800×750mm |
| Motor power/Voltage frequency | 7.5kw(10HP)/380V 50Hz |
| External diamerter of dust-Collecting mouth | 100mm |
| Weight of machine | 980kg |
| Overall diamensions(L×W×H) | 1700×1350×2350mm |
Strength:
1.steel ball double-slide structure with high precision ,the error of straightness on whole distance of travel is less than 0.15mm
2.high efficiency & durable
3.cast iron fixed worktable
4.motor add over load protection
5.quality electric parts with Schneider Brand
6..certification assurance
7.safe and easy to operate
8.some model with sliding table
