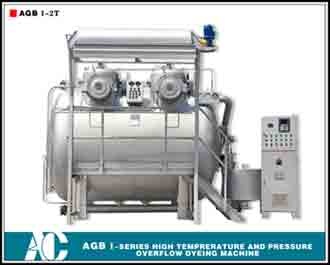

AGBI Dyeing machine
產品型號：AGBI
產品分類：紡織染整成衣暨縫製機械 / 紡織染整機械 / 染色機
產品特色
ith a maximum speed of 360m/min, fabrics move fast inside the chamber. The liquor is meanwhile separated effectively so as to enhance the circulation of fabrics and liquor. The homogenous dyeing liquor infiltrates into fabrics frequently which results in a better dyeing effect.
2 Double nozzles transit the cloth in overflowing model,reach favorable dyeing effect.
The unique designing of the overflow nozzle works together with the fabric-lifting wheel to drive the fabric moving. Fabrics float inside the nozzle in a natural manner. Fuzzy grain problem is thus avoided.
3 Innovative fabric accumulator with large capacity and low liquor ratio
The innovative fabric accumulator is designed in a curve shape with Teflon tubes distributed at the bottom of the chamber. This designing allows a bigger space for larger capacity and smoother fabric movement. At the same time, this innovative designing can secondarily separate the liquor from fabrics. The dyeing liquor is thus circulated faster and a lower liquor ratio is achieved.
產品規格
1 Machine body made of anti-corrosive high quality S.S.
2 Fabric lifting system with inverter, 50—360m/min.
3 Circular dual-grade nozzle.
4 Fabric-liquor separating and collecting system.
5 Effective S.S. centrifugal pump with mechanical seal
6 Main pump speed inverter or flow regulating valve
7 Pneumatic valve controls heating, cooling, water inlet, outlet and ringing.
8 Heat exchanger.
9 Internal cleaning system
10 Water level indicator
11 Operator-friendly feeding system.
12 Main control panel equipped with advanced micro-processer
13 Working platform
14 Fabric unloading device.
15 Main body pressurizing and depressurizing system.
Options
Seam detector
Quantitative feeding system with feeding pump
Proportional heating and cooling system
Secondary water inlet and outlet.
Fabric unloading device with plaiter
Hot water tank
Technical data
Max. working pressure：3。5bar
Max. working temperature：140℃
3.5℃/min (25--130℃, 7bar steam.)
Cooling rate: 2.5℃/min (130--80℃, 3bar cooling water pressure).
