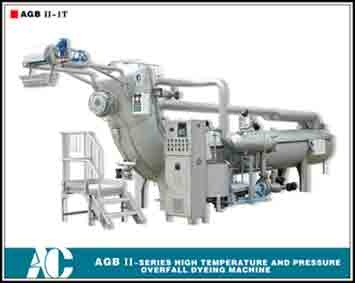

AGBII Dyeing machine
產品型號:AGBII
產品分類:紡織染整成衣暨縫製機械 / 紡織染整機械 / 染整設備
產品特色
This model is features as crease marks free. Fabrics are circulating in the liquor at a natural floating state, which fundamentally stops the crease marks from occurring. It is thus an ideal choice for sensitive fabrics.
Large capacity and high speed.
The fabric accumulator bottom is paved with Teflon bar, which forms a large space for fabric moving. This designing is accompanied with large-volume main pump and high speed fabric-lifting system to guarantee an optimized dyeing effect.
Sophisticated processing results in ideal surface effect
All the surfaces that is possible to be in touch with the fabrics are polished with care. These highly polished surfaces and the overflow dual-grade nozzle remove the fuzzy grain problem on fabrics.
產品規格
achine body and all the parts that are possible to be in touch with dyeing liquor are made of excellent anti-corrosive S.S316L.
Fabric lifting system with inverter, 50—360m/min.
Circular nozzle inSS316.
Fabric entangling alarming and release system.
Overflow ringing system
Effective S.S. centrifugal pump with mechanical seal
Main pump speed controlled by frequency inverter
Pneumatic valve controls heating, cooling, water inlet, outlet and ringing.
High efficient heat exchanger.
Internal cleaning system
Water level indicator
Operator-friendly feeding system.
Main control panel equipped with advanced micro-processer
Working platform
Fabric unloading plaiter.
Options:
Seam detector
Analog feeding system with feeding pump
Proportional heating up/cooling system.
2nd water filing / drainage for main tank.
Main technical data
Max. working temperature:140℃
Max. working pressure :3.7bar
Heating rate: 25--130℃, 3.2℃/min on average ( steam pressure 7bar)
Cooling rate: 130--80℃, 2.2℃/min on average (cooling water pressure 3 bar and 20℃).
