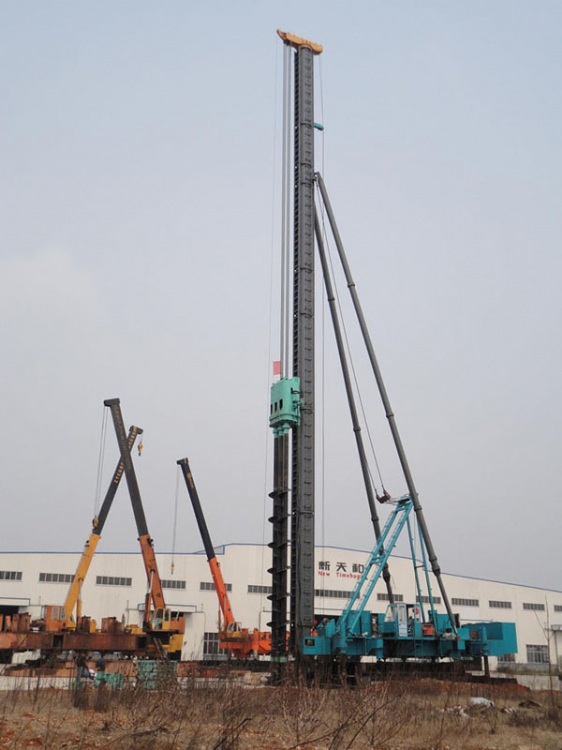

SMW multi-drilling machine
產品型號：SMW65
產品分類：自動化設備/產業機械 / 其他產業機械 / 工業儀器設備
產品特色
Self-developed new generation of piling machine—SMW Multi-drilling Machine.
Advanced design, logical framework, convenient operation.
Hydraulic foot-step chassis with low grounding intensity of pressure and high-stability.
Centralized electro-hydraulic control for convenient & safe operation.
Man-machine engineering operation handle, button, display and monitor meter.
New generation of ideal piling machine with low use & maintenance cost, high efficiency.
Applicable to foundation construction of building, bridge, port, retaining structure for subway, and also water conservancy dam, coast anti-leakage project,etc.
產品規格
Features:
System control:Hydraulic control
Pillar support:Three-points support
Rated load：700kN
Pillar diameterΦS:820mm
Pillar track space:600×Φ102mm
Slewing angle of platform:0-360º
Slewing speed of platform:10º/time
Motor power:45+30kw
Hydraulic system pressure:16mpa
Working dimension (L × W × H):15000×10000×42000mm
Transportation dimension (L × W × H):11500×3400×3060mm
Max. long bort dimension (L × W × H):10000×10000×1400mm
Max. short bort dimension (L × W × H):6900×1600mm
Total weight:170t
